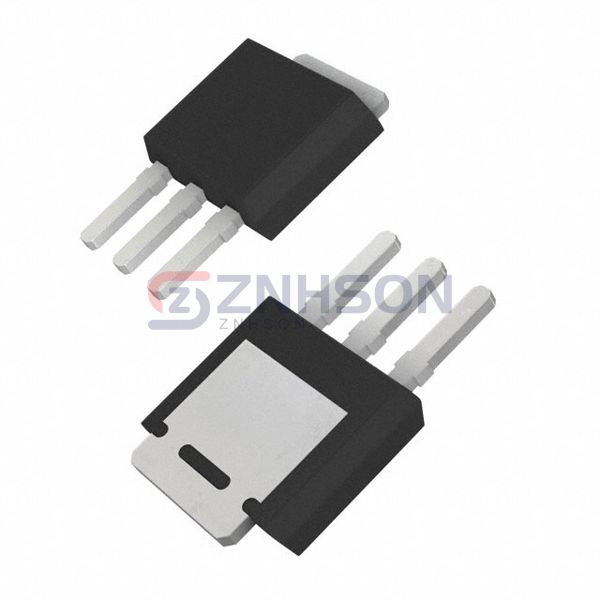

NTD78N03-001
onsemi
onsemi
MOSFET N-CH 25V 11.4A/78A IPAK
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the NTD78N03-001 from onsemi, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the NTD78N03-001 ensures reliable performance in demanding environments. Upgrade your circuit designs with onsemi's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 11.4A (Ta), 78A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6mOhm @ 78A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2250 pF @ 12 V
- FET Feature: -
- Power Dissipation (Max): 1.4W (Ta), 64W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: I-PAK
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
Related Products
onsemi
NTB25P06G
Diodes Incorporated
ZXMN6A07FTC
Microchip Technology

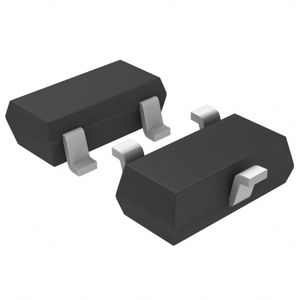

TN2130K1-G-VAO
Taiwan Semiconductor Corporation

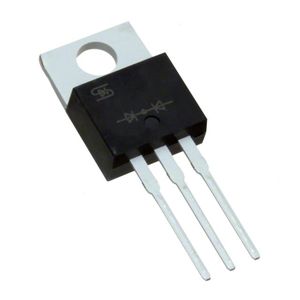

TSM10N60CZ C0
Infineon Technologies
IRFP4232PBF
onsemi
FQA44N10
Alpha & Omega Semiconductor Inc.

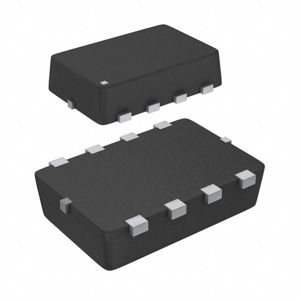

AON7400AL_103
Infineon Technologies
IRF2804STRR
NXP USA Inc.

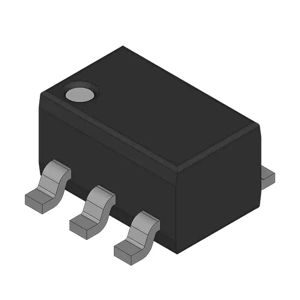

2N7002PS/ZL115
