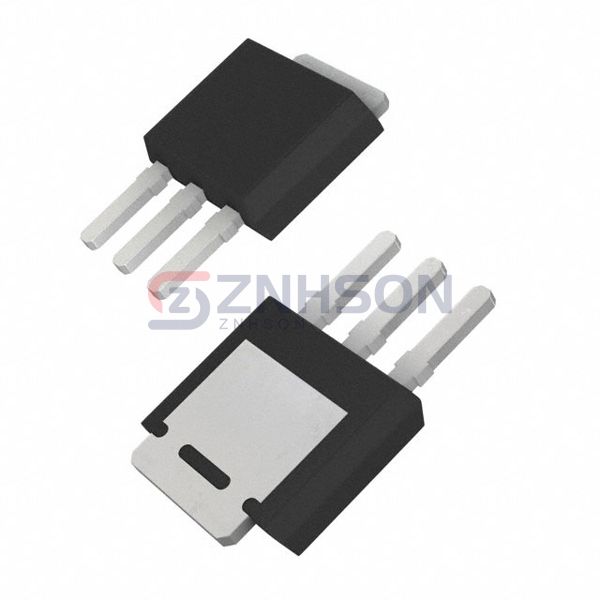

NTD78N03-1G
onsemi
onsemi
MOSFET N-CH 25V 11.4A/78A IPAK
$0.24
Available to order
Reference Price (USD)
1+
$0.24000
500+
$0.2376
1000+
$0.2352
1500+
$0.2328
2000+
$0.2304
2500+
$0.228
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the NTD78N03-1G by onsemi, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the NTD78N03-1G is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 11.4A (Ta), 78A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6mOhm @ 78A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2250 pF @ 12 V
- FET Feature: -
- Power Dissipation (Max): 1.4W (Ta), 64W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: I-PAK
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
