NTE6090
NTE Electronics, Inc
NTE Electronics, Inc
R-DUAL SCHOTTKY 45V 30A
$7.40
Available to order
Reference Price (USD)
1+
$7.40000
500+
$7.326
1000+
$7.252
1500+
$7.178
2000+
$7.104
2500+
$7.03
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the NTE6090 by NTE Electronics, Inc represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With NTE Electronics, Inc's patented junction design, the NTE6090 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 15 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 1 mA @ 45 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
Related Products
Vishay General Semiconductor - Diodes Division
VS-MBRB3030CTLL-M3
Vishay General Semiconductor - Diodes Division
VS-6CWQ04FNTRR-M3
Infineon Technologies
DD750S65K3NOSA1
Taiwan Semiconductor Corporation
TSF40L150C
IXYS
DSEE15-12CC
Renesas Electronics America Inc
1S2835-D-T1-A
STMicroelectronics
STPS40M120CR
SMC Diode Solutions
84CNQ045SL
GeneSiC Semiconductor

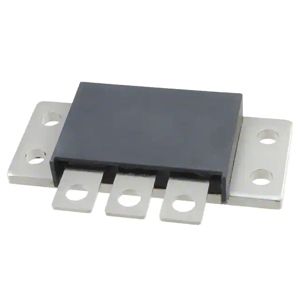

FST12035
