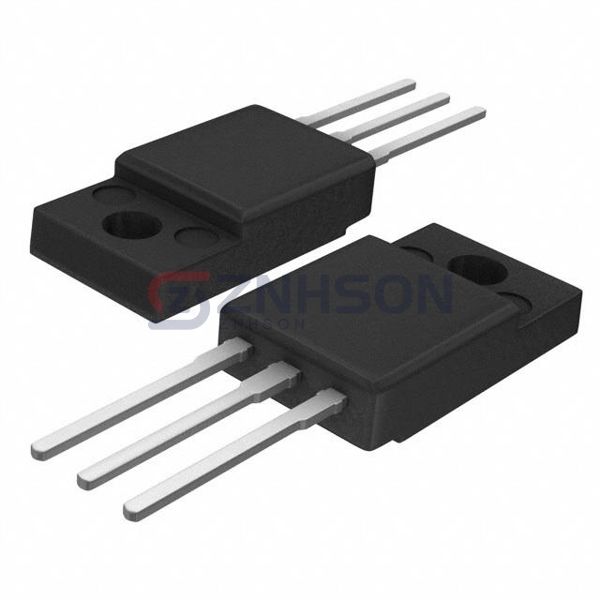

NTPF360N80S3Z
onsemi
onsemi
MOSFET N-CH 800V 13A TO220FP
$3.17
Available to order
Reference Price (USD)
1+
$3.17000
500+
$3.1383
1000+
$3.1066
1500+
$3.0749
2000+
$3.0432
2500+
$3.0115
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the NTPF360N80S3Z by onsemi, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The NTPF360N80S3Z stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose onsemi.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 13A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 360mOhm @ 6.5A, 10V
- Vgs(th) (Max) @ Id: 3.8V @ 300µA
- Gate Charge (Qg) (Max) @ Vgs: 25.3 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1143 pF @ 400 V
- FET Feature: -
- Power Dissipation (Max): 31W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220FP
- Package / Case: TO-220-3 Full Pack
