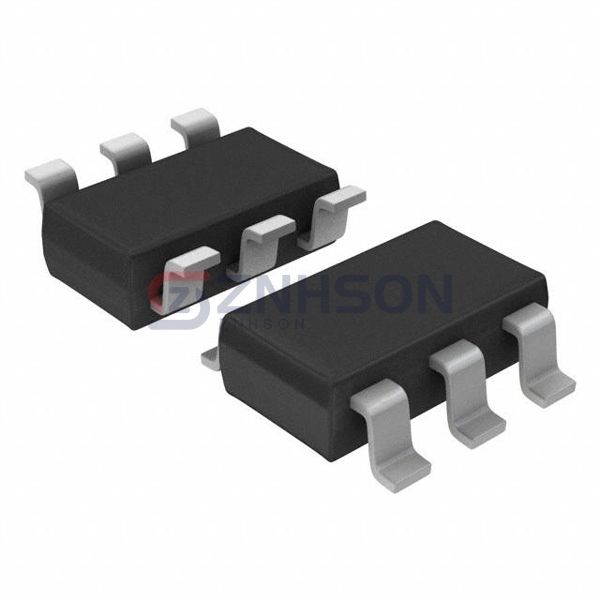

NUP2201MR6T1
onsemi
onsemi
TVS DIODE 5VWM 20VC 6TSOP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the NUP2201MR6T1 TVS diode by onsemi. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the NUP2201MR6T1 are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the NUP2201MR6T1 can shield HDMI ports in consumer electronics from voltage surges. Trust onsemi's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Obsolete
- Type: Steering (Rail to Rail)
- Unidirectional Channels: 2
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: 20V
- Current - Peak Pulse (10/1000µs): 8A (8/20µs)
- Power - Peak Pulse: 500W
- Power Line Protection: Yes
- Applications: General Purpose
- Capacitance @ Frequency: 3pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package: 6-TSOP
