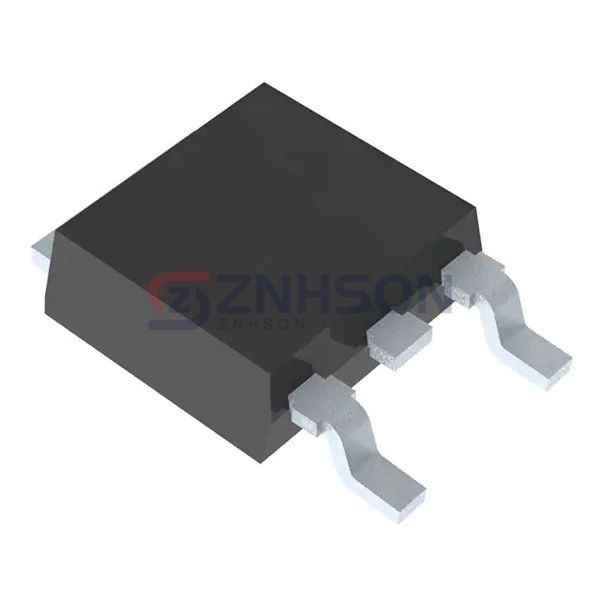

NVATS4A101PZT4G
onsemi
onsemi
MOSFET P-CHANNEL 30V 27A ATPAK
$0.00
Available to order
Reference Price (USD)
3,000+
$0.36222
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the NVATS4A101PZT4G by onsemi, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The NVATS4A101PZT4G stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose onsemi.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 27A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 30mOhm @ 13A, 10V
- Vgs(th) (Max) @ Id: 2.6V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 18.5 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 875 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 36W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: ATPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Related Products
NXP USA Inc.
BUK9535-55A127
IXYS

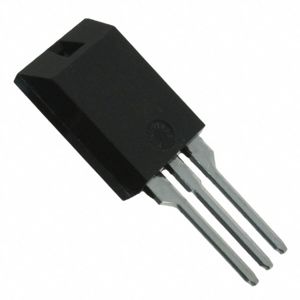

IXTC13N50
Infineon Technologies

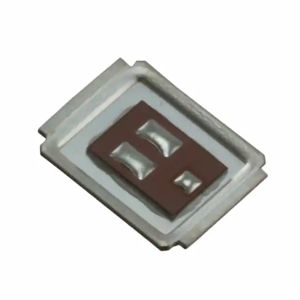

IRF6638TRPBF
NXP USA Inc.

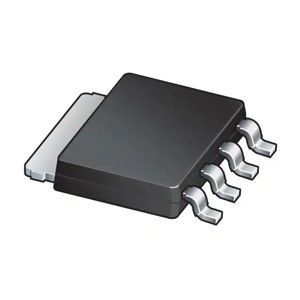

BUK9Y7R8-80E,115
Infineon Technologies
SPD30N03S2L-10
Infineon Technologies
AUIRFR2307Z
NXP USA Inc.

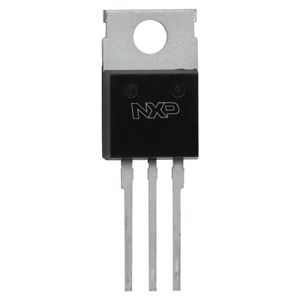

BUK7505-30A,127
