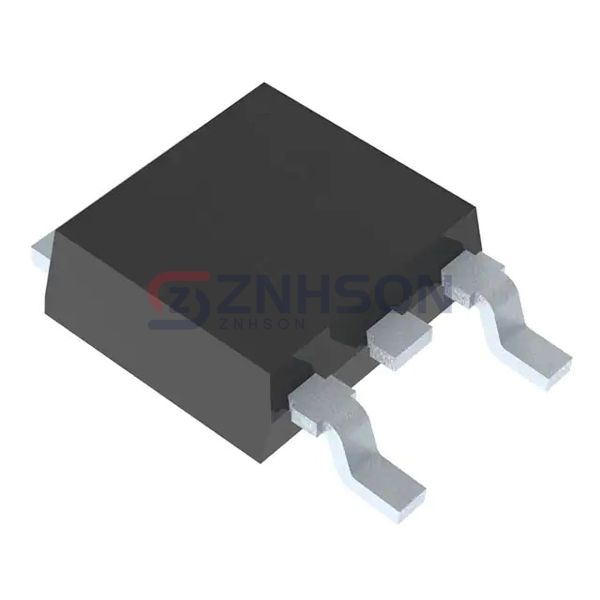

NVATS5A304PLZT4G
onsemi
onsemi
MOSFET P-CHANNEL 60V 120A ATPAK
$0.00
Available to order
Reference Price (USD)
3,000+
$2.20503
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the NVATS5A304PLZT4G by onsemi, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the NVATS5A304PLZT4G is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6.5mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2.6V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 250 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 13000 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 108W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: ATPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
