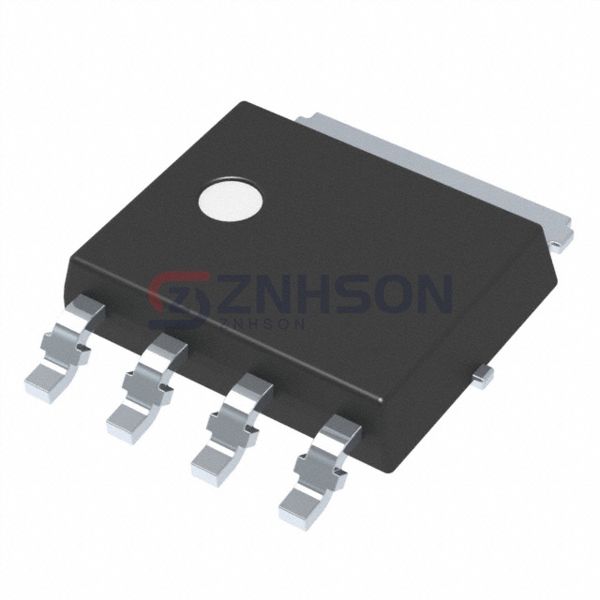

NVMYS3D5N04CTWG
onsemi
onsemi
MOSFET N-CH 40V 24A/102A LFPAK4
$1.05
Available to order
Reference Price (USD)
1+
$1.04989
500+
$1.0393911
1000+
$1.0288922
1500+
$1.0183933
2000+
$1.0078944
2500+
$0.9973955
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NVMYS3D5N04CTWG single MOSFET from onsemi is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the NVMYS3D5N04CTWG is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 102A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.3mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 3.5V @ 60µA
- Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1600 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.6W (Ta), 68W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK4 (5x6)
- Package / Case: SOT-1023, 4-LFPAK
