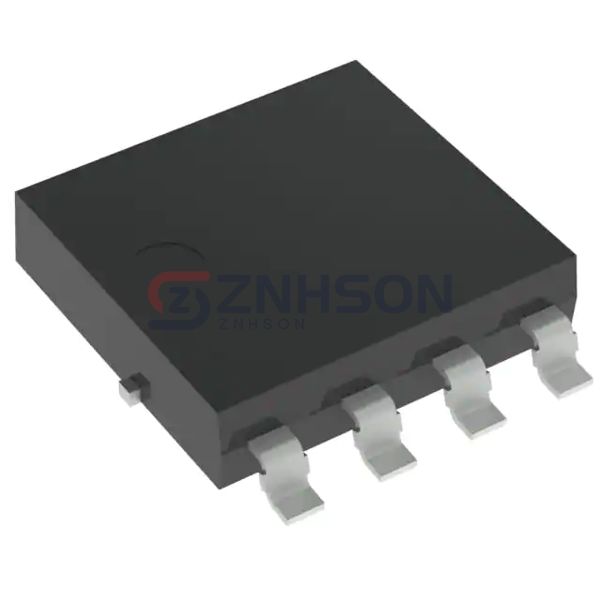

NVTYS003N04CLTWG
onsemi
onsemi
T6 40V N-CH LL IN LFPAK33
$1.04
Available to order
Reference Price (USD)
1+
$1.03594
500+
$1.0255806
1000+
$1.0152212
1500+
$1.0048618
2000+
$0.9945024
2500+
$0.984143
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NVTYS003N04CLTWG by onsemi is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose onsemi for innovation you can depend on.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 23A (Ta), 106A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.4mOhm @ 40A, 10V
- Vgs(th) (Max) @ Id: 2V @ 60µA
- Gate Charge (Qg) (Max) @ Vgs: 36 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2240 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta), 69W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-LFPAK
- Package / Case: SOT-1205, 8-LFPAK56
