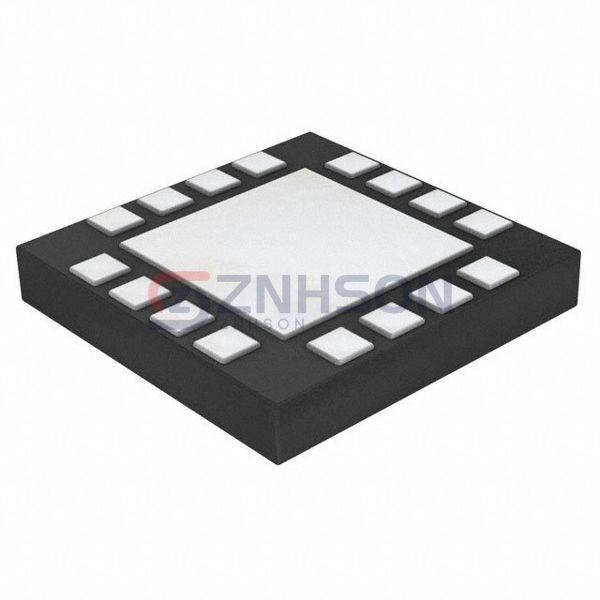

NX3L2467HR,115
NXP USA Inc.
NXP USA Inc.
IC ANALOG SWITCH DPDT HXQFN16U
$0.00
Available to order
Reference Price (USD)
1,500+
$0.32320
3,000+
$0.29290
7,500+
$0.27270
10,500+
$0.26866
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
NXP USA Inc.'s NX3L2467HR,115 sets new benchmarks for analog switch ICs with its patented low-voltage operation down to 1.8V while handling analog signals up to 36V peak. This bidirectional multiplexer/demultiplexer from our premium Interface line offers break-before-make switching action with <20ns transition time. Medical ultrasound systems leverage its precision timing characteristics, while IoT edge devices benefit from its 0.1 A leakage current. The NX3L2467HR,115 is the preferred choice for: laboratory automation equipment, phased-array radar systems, smart grid sensors, and high-speed data loggers. Its lead-free/GREEN compliance meets global environmental standards.
Specifications
- Product Status: Discontinued at Digi-Key
- Switch Circuit: DPDT
- Multiplexer/Demultiplexer Circuit: 2:2
- Number of Circuits: 2
- On-State Resistance (Max): 750mOhm
- Channel-to-Channel Matching (ΔRon): 70mOhm
- Voltage - Supply, Single (V+): 1.4V ~ 4.3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 40ns, 20ns
- -3db Bandwidth: 60MHz
- Charge Injection: 15pC
- Channel Capacitance (CS(off), CD(off)): 35pF
- Current - Leakage (IS(off)) (Max): 10nA
- Crosstalk: -90dB @ 100kHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-XFQFN Exposed Pad
- Supplier Device Package: 16-HXQFN (3x3)
Related Products
Analog Devices Inc.

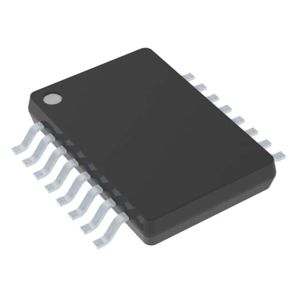

ADG904BRU-R
onsemi
FSA4157AP6
Analog Devices Inc./Maxim Integrated

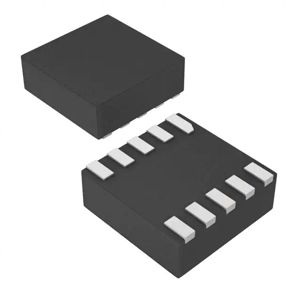

MAX4745HELB+
Vishay Siliconix
DG411DY-T1
Analog Devices Inc./Maxim Integrated
MAX4664CSE
Harris Corporation

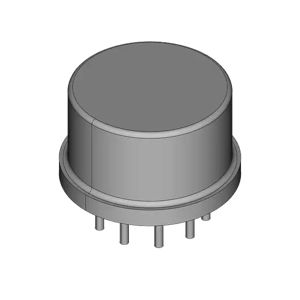

DG187BA
