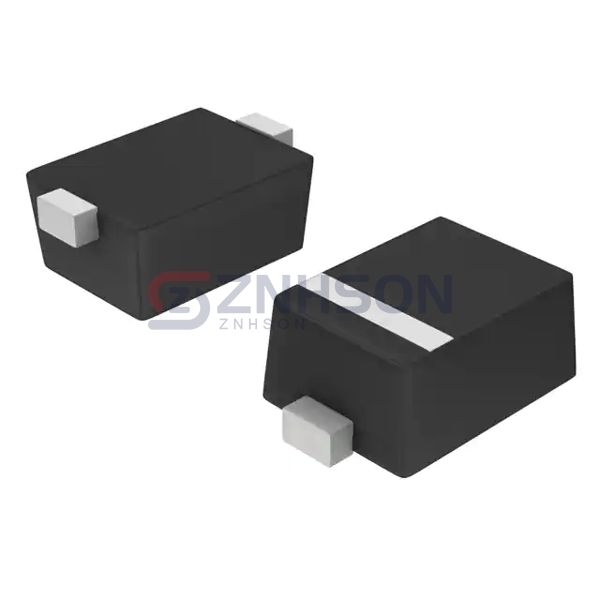

NZ9F20VT5G
onsemi
onsemi
DIODE ZENER 20V 250MW SOD923
$0.32
Available to order
Reference Price (USD)
8,000+
$0.04326
16,000+
$0.03705
24,000+
$0.03498
56,000+
$0.03291
200,000+
$0.02877
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NZ9F20VT5G from onsemi is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the NZ9F20VT5G is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 20 V
- Tolerance: ±5%
- Power - Max: 250 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 15.4 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOD-923
- Supplier Device Package: SOD-923
