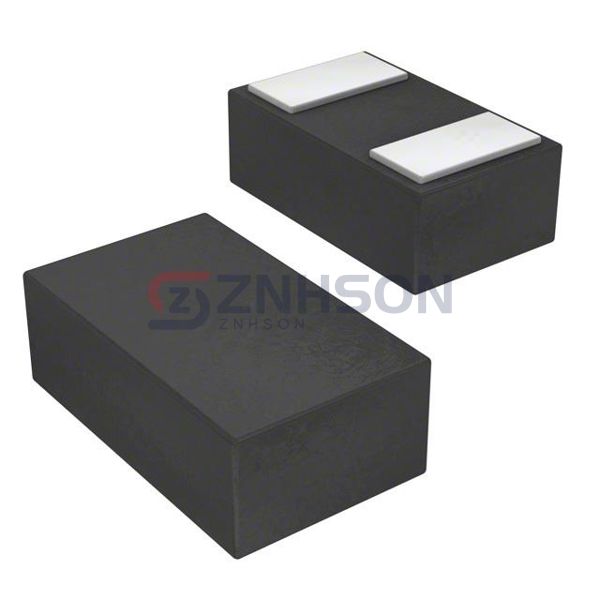

NZD5V6MUT5G
onsemi
onsemi
DIODE ZENER 5.6V 300MW 2-X3DFN
$0.05
Available to order
Reference Price (USD)
1+
$0.05000
500+
$0.0495
1000+
$0.049
1500+
$0.0485
2000+
$0.048
2500+
$0.0475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NZD5V6MUT5G from onsemi is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the NZD5V6MUT5G is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Obsolete
- Voltage - Zener (Nom) (Vz): 5.6 V
- Tolerance: ±5%
- Power - Max: 300 mW
- Impedance (Max) (Zzt): 60 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 2.5 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 10 mA
- Operating Temperature: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: 0201 (0603 Metric)
- Supplier Device Package: 2-X3DFN (0.6x0.3) (0201)
