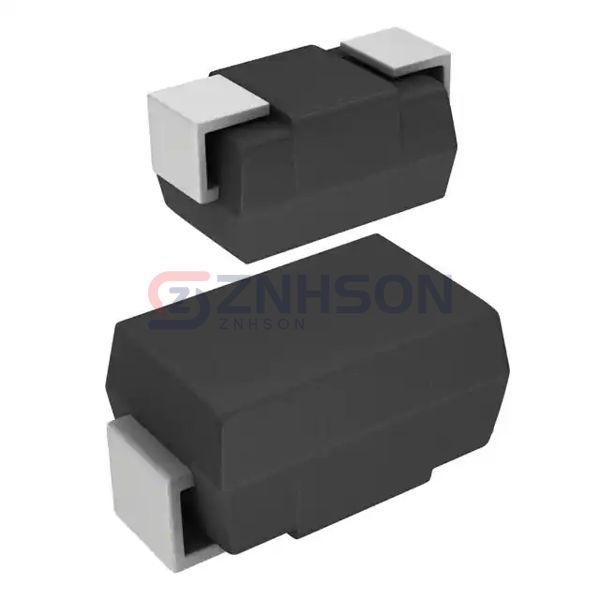

P4SMA56AS_R1_00001
Panjit International Inc.
Panjit International Inc.
SURFACE MOUNT TRANSIENT VOLTAGE
$0.41
Available to order
Reference Price (USD)
1+
$0.41000
500+
$0.4059
1000+
$0.4018
1500+
$0.3977
2000+
$0.3936
2500+
$0.3895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The P4SMA56AS_R1_00001 by Panjit International Inc. is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the P4SMA56AS_R1_00001 can secure CAN bus lines in vehicles against voltage spikes. Rely on Panjit International Inc. for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 47.8V
- Voltage - Breakdown (Min): 53.2V
- Voltage - Clamping (Max) @ Ipp: 77V
- Current - Peak Pulse (10/1000µs): 5.5A
- Power - Peak Pulse: 400W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA (DO-214AC)
