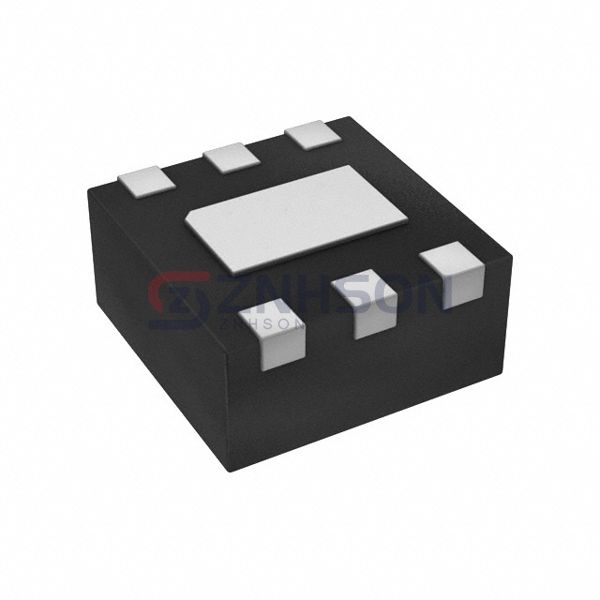

PAM3101FKF330
Diodes Incorporated
Diodes Incorporated
IC REG LINEAR 3.3V 300MA 6DFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PAM3101FKF330 from Diodes Incorporated is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.23V @ 300mA
- Current - Output: 300mA
- Current - Quiescent (Iq): 90 µA
- Current - Supply (Max): 90 µA
- PSRR: 70dB ~ 65dB (100Hz ~ 1kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 6-WFDFN Exposed Pad
- Supplier Device Package: 6-DFN (1.6x1.6)
