PBC01SFEN
Sullins Connector Solutions
Sullins Connector Solutions

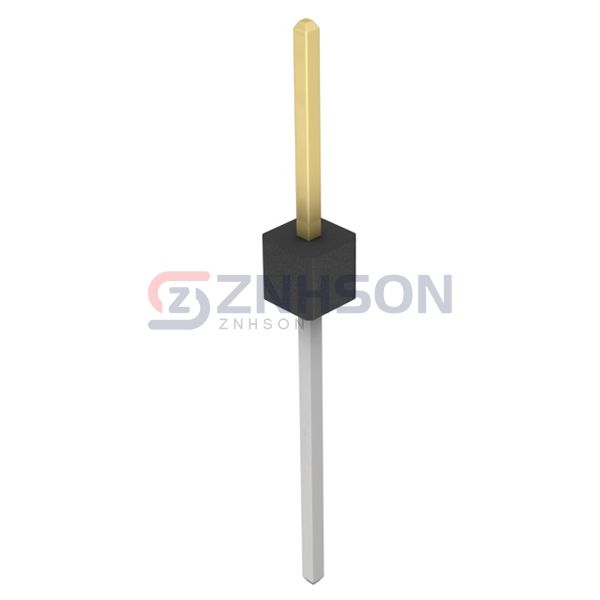

CONN HEADER VERT 1POS
$0.25
Available to order
Reference Price (USD)
1+
$0.25000
10+
$0.23500
25+
$0.20040
50+
$0.17540
100+
$0.16290
250+
$0.14416
500+
$0.13788
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PBC01SFEN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PBC01SFEN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 1
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.938" (23.83mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
