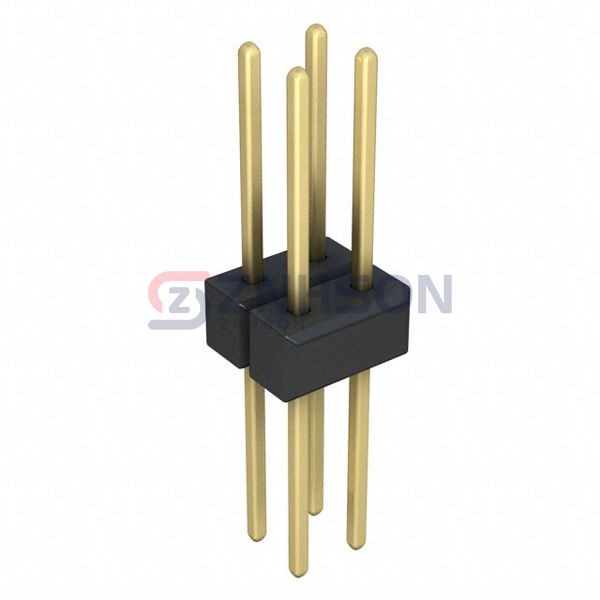

PBC02DFCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 4POS 2.54MM
$0.51
Available to order
Reference Price (USD)
1+
$0.51000
10+
$0.47600
25+
$0.42840
50+
$0.38080
100+
$0.36490
250+
$0.33320
500+
$0.31734
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC02DFCN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PBC02DFCN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
4-103185-0-19
Preci-Dip
451-10-260-00-017101
Samtec Inc.
TSW-103-08-T-D
Amphenol ICC (FCI)
57102-S06-25LF
Samtec Inc.
TSM-112-01-T-DV
Samtec Inc.
TFM-107-02-S-D-DS
Amphenol ICC (FCI)
77312-186LF
Samtec Inc.

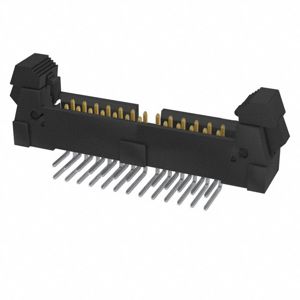

EHT-113-01-S-D-RA-12
