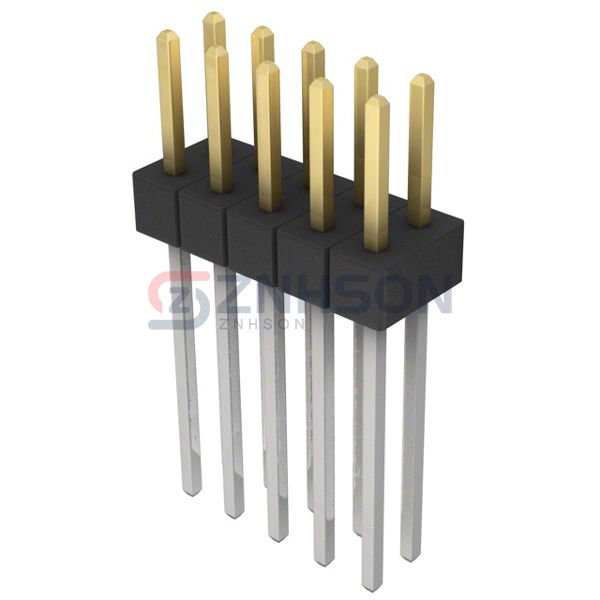

PBC05DAEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 10POS 2.54MM
$1.27
Available to order
Reference Price (USD)
1+
$1.27000
10+
$1.11800
25+
$1.05200
50+
$1.00820
100+
$0.96430
250+
$0.87668
500+
$0.78900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC05DAEN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.850" (21.59mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77317-412-70LF
Samtec Inc.
TSM-130-02-S-DV-P
Samtec Inc.
ZSS-125-04-S-D-840
Samtec Inc.
TFM-110-12-L-D-A-K
Samtec Inc.
TFM-125-22-L-D
Sullins Connector Solutions

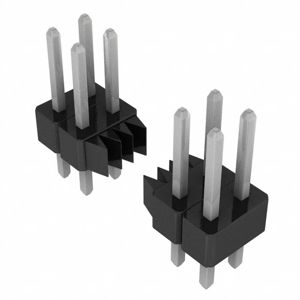

GEC05DAAN
Samtec Inc.

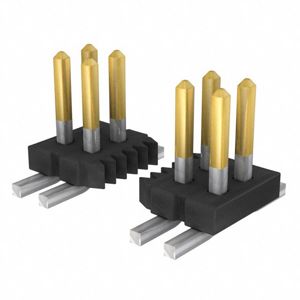

FTS-114-01-S-DV-P
Samtec Inc.

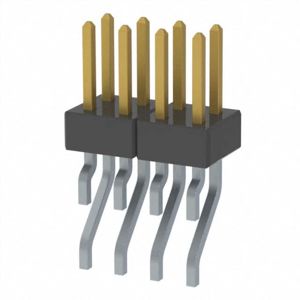

MMT-104-02-S-DH-K-TR
Samtec Inc.

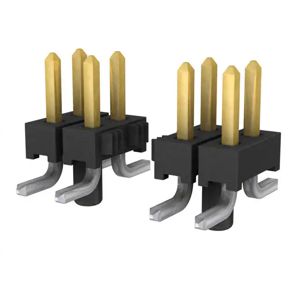

TMM-105-06-F-D-SM-A-P
