PBC08SADN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 8POS 2.54MM
$0.94
Available to order
Reference Price (USD)
1+
$0.94000
10+
$0.83000
25+
$0.78080
50+
$0.74820
100+
$0.71570
250+
$0.65068
500+
$0.58560
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PBC08SADN rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PBC08SADN adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-105-01-S-DV
Samtec Inc.
MMT-110-02-F-DH-P-TR
Preci-Dip
852-10-076-20-002101
Samtec Inc.
FTS-110-04-F-DV-A
Samtec Inc.
TFM-105-11-S-D
Würth Elektronik
61201021621
Samtec Inc.
TSM-105-01-S-DH-009
Samtec Inc.
TMMH-115-01-F-D-RA
Samtec Inc.

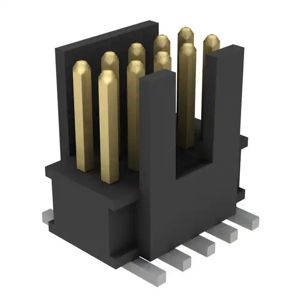

FTSH-105-01-F-DV-K-P-TR
