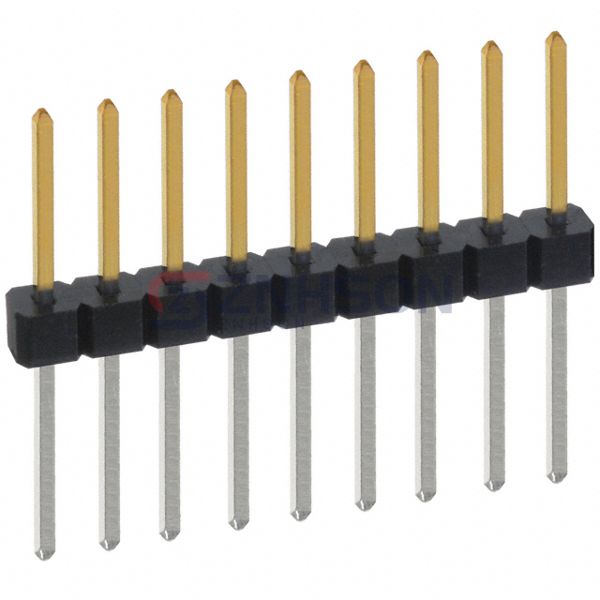

PBC09SFCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 9POS 2.54MM
$1.19
Available to order
Reference Price (USD)
1+
$1.19000
10+
$1.04800
25+
$0.98640
50+
$0.94540
100+
$0.90420
250+
$0.82200
500+
$0.73980
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PBC09SFCN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PBC09SFCN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-137-14-T-S
Samtec Inc.

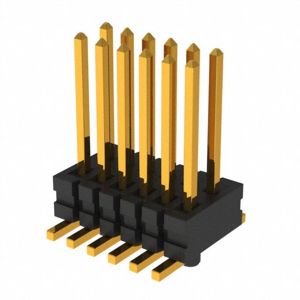

FTE-112-01-G-DH
Harwin Inc.
M20-9992045
Adam Tech
PH2RA-22-UA
Mill-Max Manufacturing Corp.
335-10-110-00-160000
Samtec Inc.
FTSH-130-02-L-DH
Molex
0015913093
Samtec Inc.

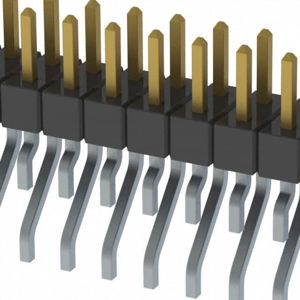

MMT-125-01-L-DH-K
Amphenol ICC (FCI)

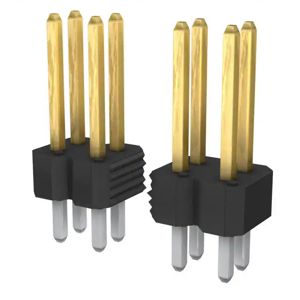

77313-822-40LF
