PBC10DAHN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 20POS 2.54MM
$3.05
Available to order
Reference Price (USD)
1+
$3.05000
10+
$2.92800
25+
$2.68400
50+
$2.56200
100+
$2.44000
250+
$2.13500
500+
$2.07400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC10DAHN male pin header by Sullins Connector Solutions provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Sullins Connector Solutions guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77313-118-56LF
TE Connectivity AMP Connectors
102802-8
Samtec Inc.
TSM-118-01-L-SV
Mill-Max Manufacturing Corp.
850-10-030-30-002000
Amphenol ICC (FCI)
77313-422-32LF
METZ CONNECT USA Inc.
PM20C04VBNN
Molex
55932-0231
Samtec Inc.
TSW-135-17-T-D
Amphenol ICC (FCI)

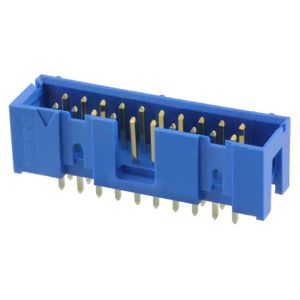

75869-104RLF
