PBC12DAHN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 24POS 2.54MM
$3.66
Available to order
Reference Price (USD)
1+
$3.66000
10+
$3.51400
25+
$3.22080
50+
$3.07440
100+
$2.92800
250+
$2.56200
500+
$2.48880
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC12DAHN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PBC12DAHN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
ZSS-108-03-L-D-705
Samtec Inc.
TSW-143-08-G-D-RA
Molex
74162-1224

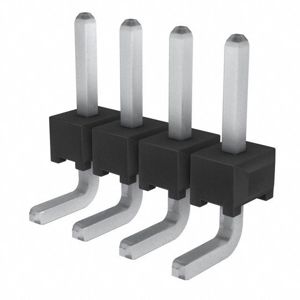

Samtec Inc.
TMM-133-01-T-S-RE

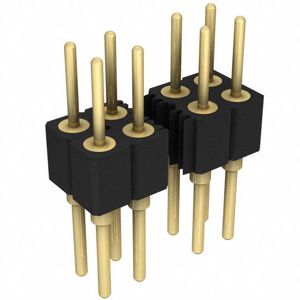

Preci-Dip
832-10-012-10-001101

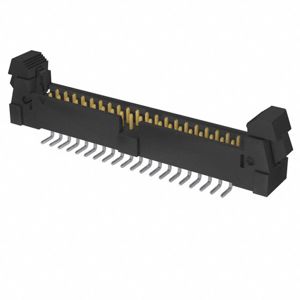

Samtec Inc.
EHT-120-01-F-D-SM-SR

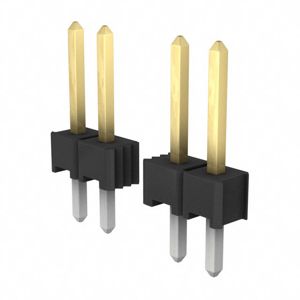

TE Connectivity AMP Connectors
9-146285-0-23
Samtec Inc.
ZSS-132-04-G-D-680

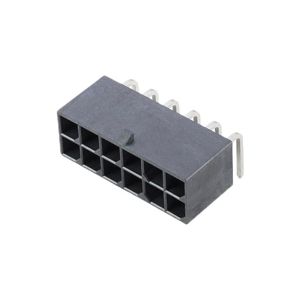

Amphenol ICC (FCI)
