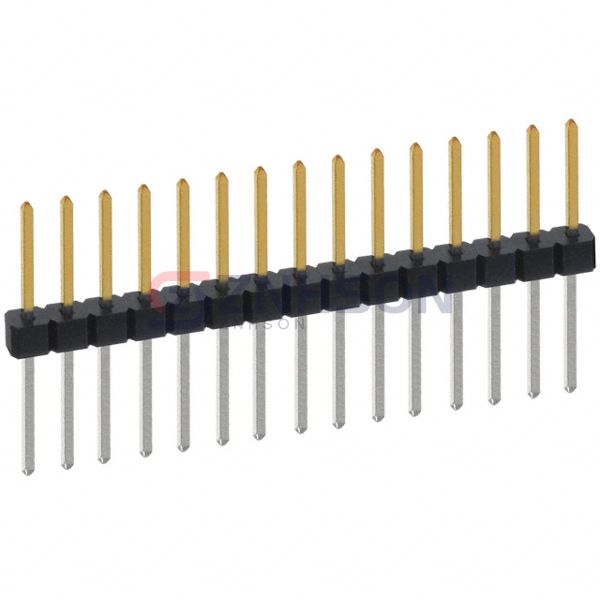

PBC15SFBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 15POS 2.54MM
$1.71
Available to order
Reference Price (USD)
1+
$1.71000
10+
$1.55600
25+
$1.46040
50+
$1.39700
100+
$1.33350
250+
$1.20652
500+
$1.11126
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the PBC15SFBN rectangular connector header by Sullins Connector Solutions. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the PBC15SFBN ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Sullins Connector Solutions for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 15
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.220" (5.58mm)
- Overall Contact Length: 0.638" (16.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0022285033
Samtec Inc.
HTSW-104-08-S-S-RA
TE Connectivity AMP Connectors
770872-2
Preci-Dip
830-80-017-40-001101
Amphenol ICC (FCI)
10131318-0212100LF
Sullins Connector Solutions
SMH100-LPSE-S10-SC-BK
Preci-Dip
832-10-008-30-001101
Molex
70563-0038
Molex

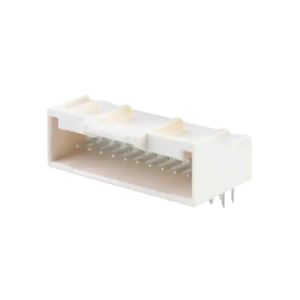

2086592240
