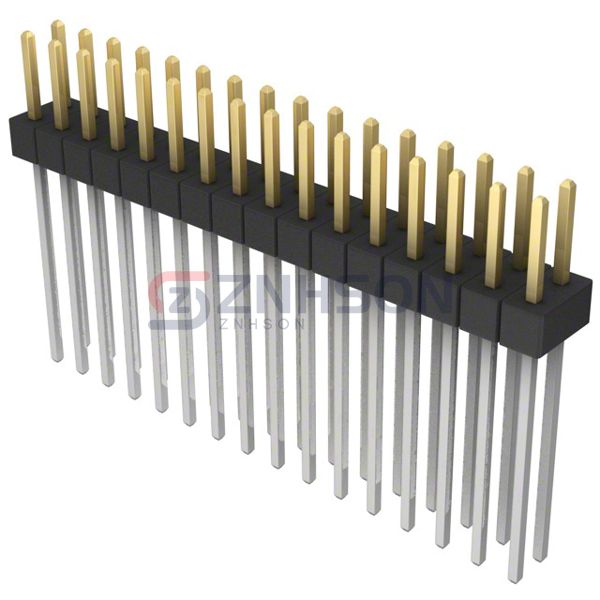

PBC16DAFN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 32POS 2.54MM
$4.39
Available to order
Reference Price (USD)
1+
$4.39000
10+
$4.21100
25+
$3.86040
50+
$3.68480
100+
$3.50930
250+
$3.07068
500+
$2.98294
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PBC16DAFN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PBC16DAFN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.620" (15.75mm)
- Overall Contact Length: 0.950" (24.13mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTMH-107-02-F-DV-A
Molex
0532617008
Preci-Dip
890-80-019-20-002101
Samtec Inc.
TSM-118-05-T-DV-A
Samtec Inc.

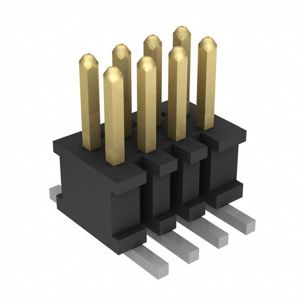

FTSH-104-01-F-DV
Samtec Inc.

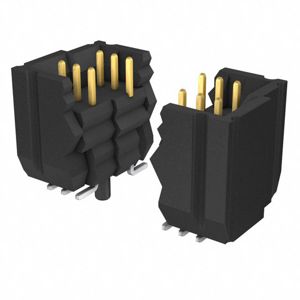

BKT-137-05-L-V-S-A-P-TR
Sullins Connector Solutions

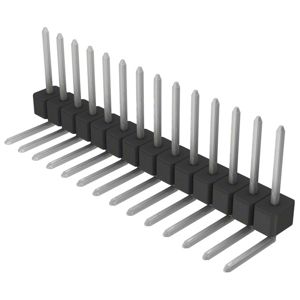

PEC14SGBN
Samtec Inc.

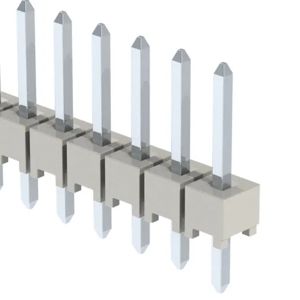

HTSW-107-07-T-S
