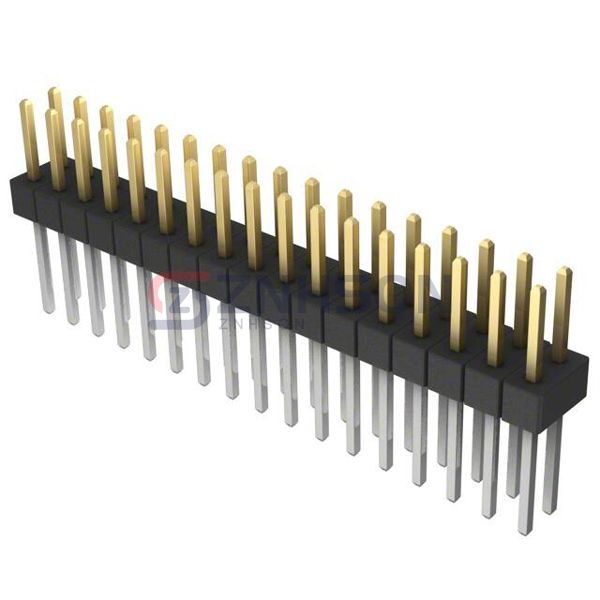

PBC17DACN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 34POS 2.54MM
$3.30
Available to order
Reference Price (USD)
1+
$3.30000
10+
$3.16900
25+
$2.90480
50+
$2.77260
100+
$2.64070
250+
$2.31056
500+
$2.24456
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC17DACN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.650" (16.51mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0015246141
Samtec Inc.

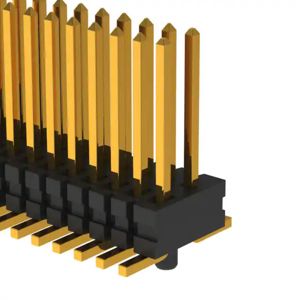

FTE-128-03-G-DV-A
Samtec Inc.

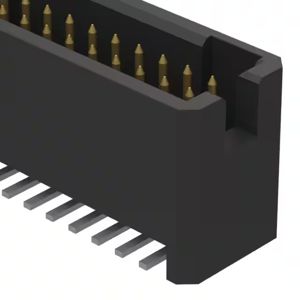

TFC-120-12-F-D
Samtec Inc.
TMM-110-04-S-D-SM
Amphenol ICC (FCI)

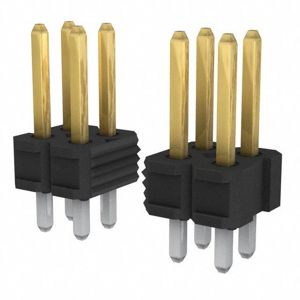

75844-101-28LF
Samtec Inc.
EHF-108-01-L-D-SM-LC
Preci-Dip

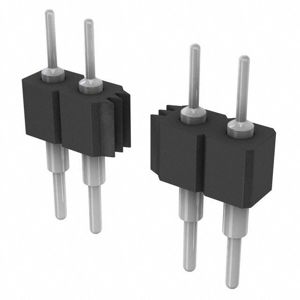

351-80-111-00-017101
Samtec Inc.

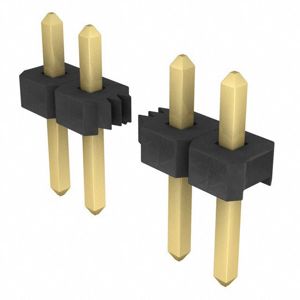

TLW-112-05-G-S
Molex

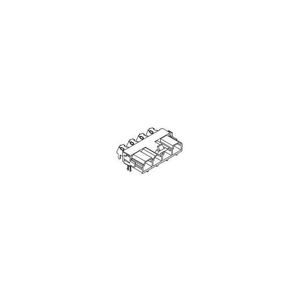

42820-2223
