PBC21DBBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 42POS 2.54MM
$4.06
Available to order
Reference Price (USD)
1+
$4.06000
10+
$3.89800
25+
$3.57280
50+
$3.41040
100+
$3.24800
250+
$2.84200
500+
$2.76080
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

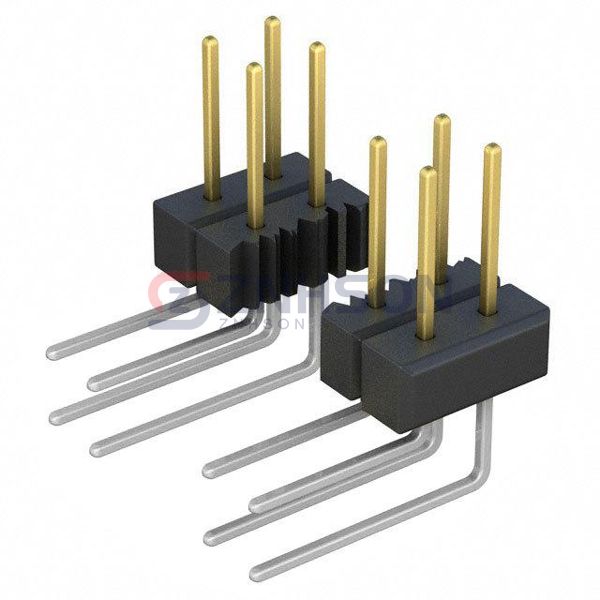

Discover the PBC21DBBN rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PBC21DBBN adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 42
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.200" (5.08mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0901361118
Preci-Dip
351-10-127-00-016101
Samtec Inc.
TSM-126-01-T-DV
Preci-Dip
350-10-111-00-012101
Samtec Inc.
TFM-110-02-L-D-LC-P-TR
Preci-Dip
351-80-130-00-003101
Samtec Inc.

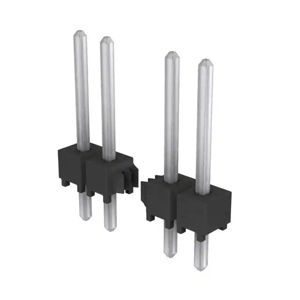

TSW-139-14-T-S
Molex
1510482211
Preci-Dip

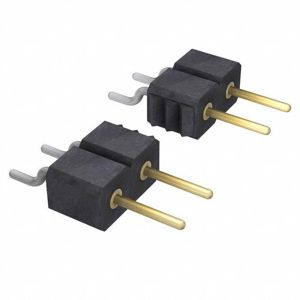

800-V3-013-40-001101
