PBC23SAGN
Sullins Connector Solutions
Sullins Connector Solutions

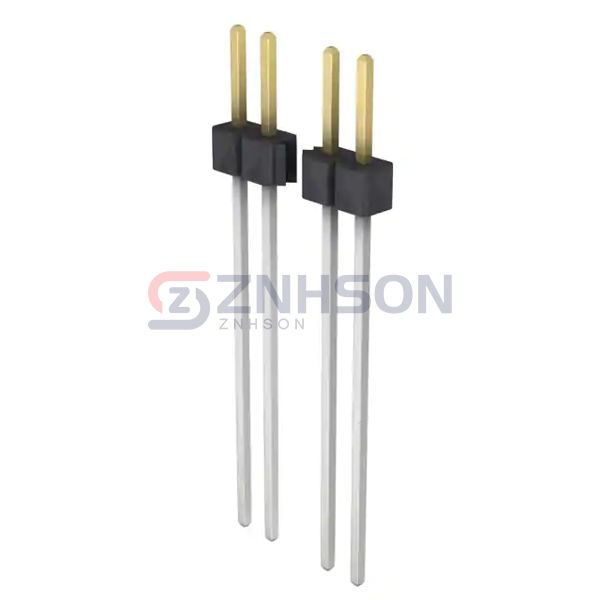

CONN HEADER VERT 23POS 2.54MM
$3.16
Available to order
Reference Price (USD)
1+
$3.16000
10+
$3.03600
25+
$2.78320
50+
$2.65660
100+
$2.53000
250+
$2.21376
500+
$2.15050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PBC23SAGN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PBC23SAGN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 23
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.720" (18.29mm)
- Overall Contact Length: 1.050" (26.67mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0878981826
Samtec Inc.
TSM-107-02-L-DH-A
Samtec Inc.
TSM-107-02-L-DH-006
Mill-Max Manufacturing Corp.
802-10-062-10-001000
Preci-Dip
450-80-272-01-899101
Samtec Inc.
FTMH-112-03-FM-DV-ES-A
Molex
0430451406
Samtec Inc.
TMM-108-06-L-D-SM-P
Amphenol ICC (FCI)

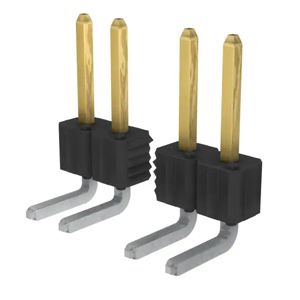

68016-105
