PBC27SBEN
Sullins Connector Solutions
Sullins Connector Solutions

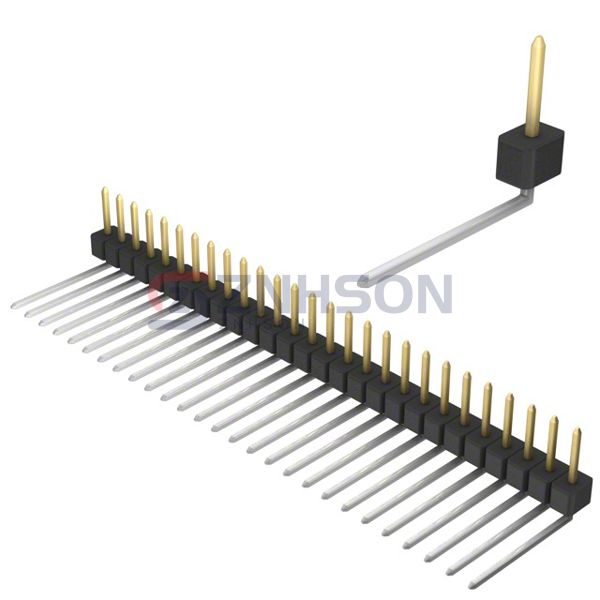

CONN HEADER R/A 27POS 2.54MM
$4.88
Available to order
Reference Price (USD)
1+
$4.88000
10+
$4.68700
25+
$4.29680
50+
$4.10140
100+
$3.90600
250+
$3.41776
500+
$3.32010
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PBC27SBEN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PBC27SBEN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 27
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.500" (12.70mm)
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.

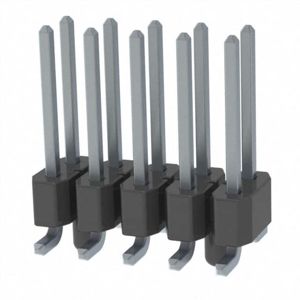

TSM-104-01-L-DH-P-TR
Hirose Electric Co Ltd
DF13-8P-1.25V(76)
Samtec Inc.
IPT1-105-02-L-D
Molex
0039302031
Samtec Inc.
HTSW-104-14-G-S-LL
Amphenol ICC (FCI)
68000-224HLF
TE Connectivity AMP Connectors

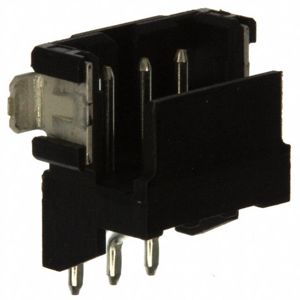

292173-3
