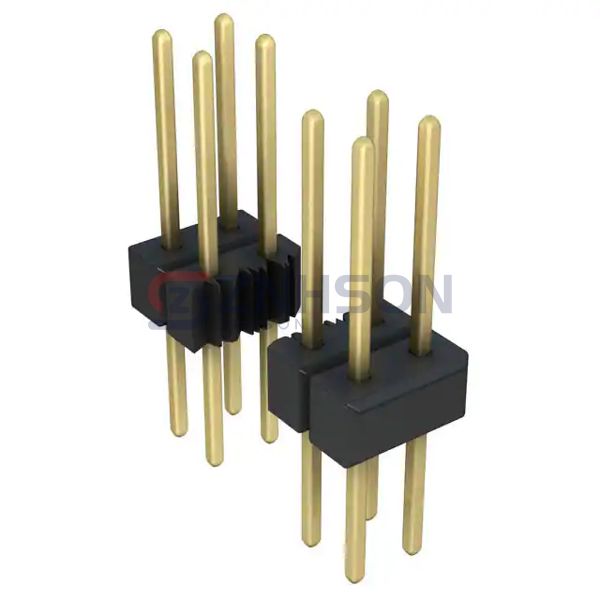

PBC29DFBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 58POS 2.54MM
$5.37
Available to order
Reference Price (USD)
1+
$5.37000
10+
$5.15000
25+
$4.72120
50+
$4.50660
100+
$4.29200
250+
$3.75552
500+
$3.64820
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC29DFBN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 58
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.220" (5.58mm)
- Overall Contact Length: 0.638" (16.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
852-90-066-20-001000
Samtec Inc.
TSM-104-01-T-DH-P-TR
TE Connectivity AMP Connectors
1MM-HU-D34-VS-00-H-TBP
Samtec Inc.
FTSH-110-04-F-DV-TR
Samtec Inc.
IPL1-104-01-L-D-RA-K
Oupiin
2215-2X10G00DN-3.1T-H2.5-P
Samtec Inc.
TSW-108-12-G-S
TE Connectivity AMP Connectors
2842112-2

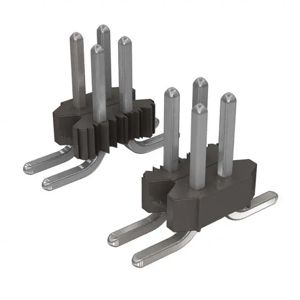

Molex
