PBC31DAHN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 62POS 2.54MM
$8.70
Available to order
Reference Price (USD)
1+
$8.70000
10+
$8.32000
25+
$7.56400
50+
$7.18580
100+
$6.99670
250+
$6.24032
500+
$5.86210
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

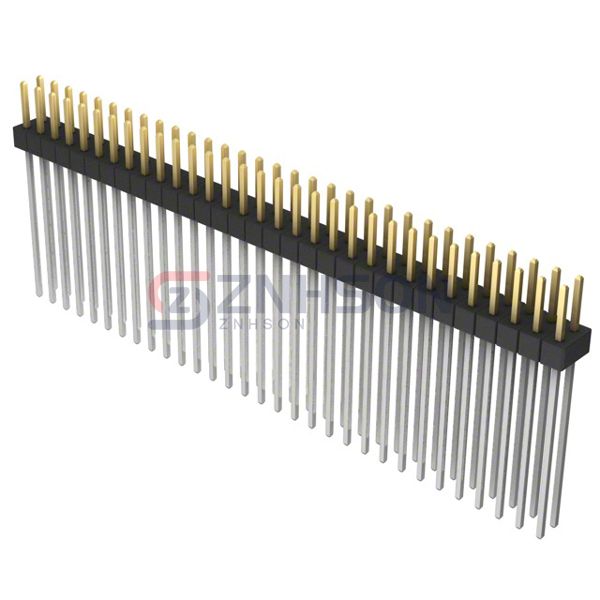

The PBC31DAHN male pin header by Sullins Connector Solutions provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Sullins Connector Solutions guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 62
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77319-104-30LF
Molex
0702462604
Preci-Dip
852-10-030-10-001101
Samtec Inc.
TSM-106-03-T-DH-A-P
Samtec Inc.
TSM-109-02-L-SH-A-002-P
TE Connectivity AMP Connectors
6-103673-0
Amphenol ICC (FCI)

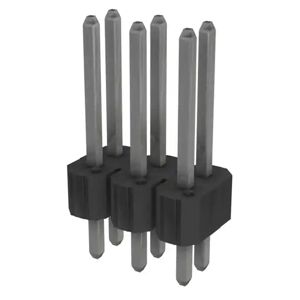

68691-406HLF
Amphenol ICC (FCI)

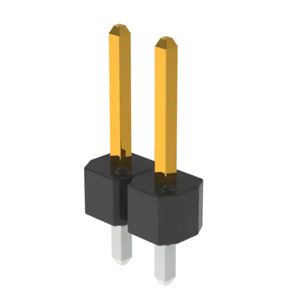

68000-302HLF
Harwin Inc.

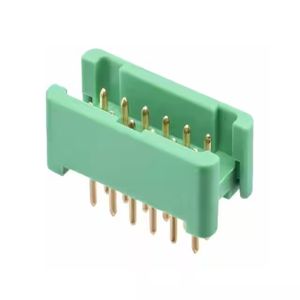

G125-MV11005L0R
