PBC31DBBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 62POS 2.54MM
$5.99
Available to order
Reference Price (USD)
1+
$5.99000
10+
$5.75400
25+
$5.27400
50+
$5.03440
100+
$4.79470
250+
$4.19532
500+
$4.07546
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PBC31DBBN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PBC31DBBN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 62
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.200" (5.08mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
2086593040
Preci-Dip
890-70-007-20-001101
TE Connectivity AMP Connectors
9-146304-0-04
Molex
0039299049
Molex
0430451613
Samtec Inc.
ZSS-117-01-S-D-450
Samtec Inc.
FTM-110-02-FM-DV-P-TR
Adam Tech
DML-16-A-V-T-SMT-BL-PP-T/R
Samtec Inc.
TSM-126-02-L-DV-A-P-TR

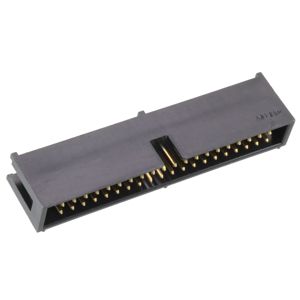

Hirose Electric Co Ltd
