PCDH20120CCG1_T0_00601
Panjit International Inc.
Panjit International Inc.
1200V SIC SCHOTTKY BARRIER DIODE
$14.32
Available to order
Reference Price (USD)
1+
$14.32000
500+
$14.1768
1000+
$14.0336
1500+
$13.8904
2000+
$13.7472
2500+
$13.604
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PCDH20120CCG1_T0_00601 rectifier array from Panjit International Inc. redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Panjit International Inc.'s precision manufacturing ensures each PCDH20120CCG1_T0_00601 meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io) (per Diode): 10A (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 10 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: 100 µA @ 1200 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
Related Products
Microchip Technology
MSCDC100A170D1PAG
Comchip Technology
CDBV3-54A-HF
Diodes Incorporated
BAT54SQ-13
Rohm Semiconductor
RFN30TS6DGC11
Vishay General Semiconductor - Diodes Division
VB20100C-M3/8W
Comchip Technology
CDBD2060-G
Vishay General Semiconductor - Diodes Division
MBR2545CT-E3/45
GeneSiC Semiconductor

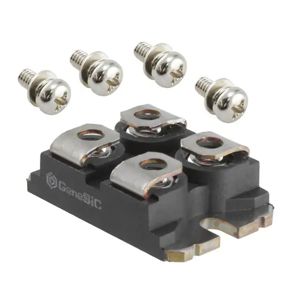

MUR2X100A06
