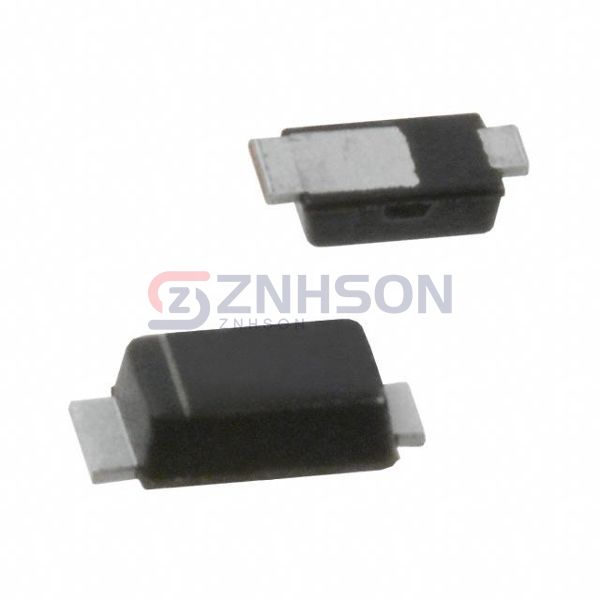

PD3S120LQ-7
Diodes Incorporated
Diodes Incorporated
DIODE SCHOTTKY 20V 1A POWERDI323
$0.69
Available to order
Reference Price (USD)
3,000+
$0.25200
6,000+
$0.23760
15,000+
$0.23040
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PD3S120LQ-7 single rectifier diode by Diodes Incorporated, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The PD3S120LQ-7 is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Diodes Incorporated's PD3S120LQ-7 for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 420 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 160 µA @ 20 V
- Capacitance @ Vr, F: 46pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: PowerDI™ 323
- Supplier Device Package: PowerDI™ 323
- Operating Temperature - Junction: -65°C ~ 125°C
