PDTC143ZQB-QZ
Nexperia USA Inc.
Nexperia USA Inc.

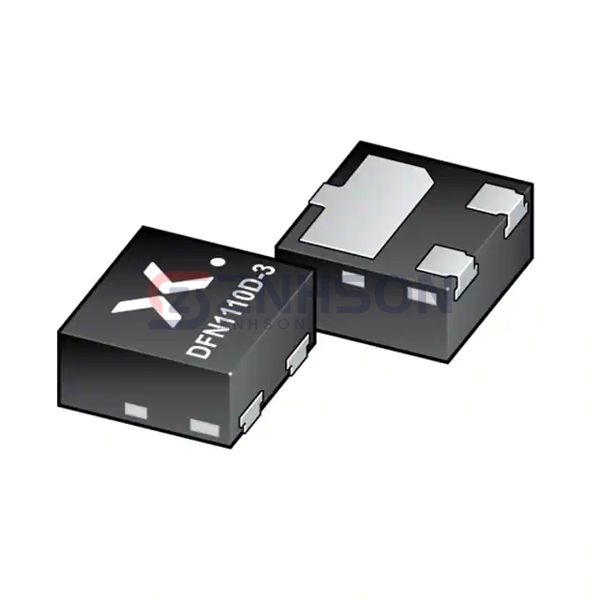

PDTC143ZQB-Q/SOT8015/DFN1110D-
$0.30
Available to order
Reference Price (USD)
1+
$0.30000
500+
$0.297
1000+
$0.294
1500+
$0.291
2000+
$0.288
2500+
$0.285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PDTC143ZQB-QZ represents Nexperia USA Inc.'s commitment to innovation in discrete semiconductors. This pre-biased single BJT transistor excels in: Automated test equipment HVAC control boards Robotics servo drives With hFE matching within 10% across production lots, it guarantees consistent performance. Its 50V VCEO rating handles demanding industrial environments with ease.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 100nA
- Frequency - Transition: 230 MHz
- Power - Max: 340 mW
- Mounting Type: Surface Mount, Wettable Flank
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1110D-3
