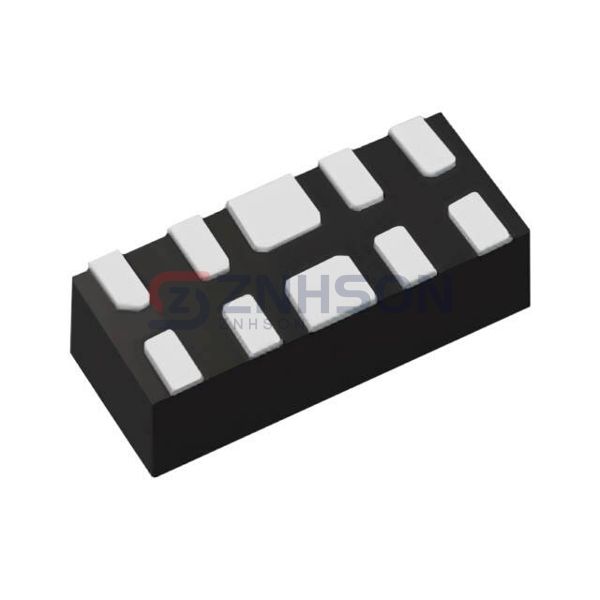

PE1403M4Q_R1_00001
Panjit International Inc.
Panjit International Inc.
ULTRA LOW CAPACITANCE ESD PROTEC
$0.50
Available to order
Reference Price (USD)
1+
$0.50000
500+
$0.495
1000+
$0.49
1500+
$0.485
2000+
$0.48
2500+
$0.475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PE1403M4Q_R1_00001 by Panjit International Inc. is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the PE1403M4Q_R1_00001 can secure CAN bus lines in vehicles against voltage spikes. Rely on Panjit International Inc. for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 4
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 3.3V (Max)
- Voltage - Breakdown (Min): 4V
- Voltage - Clamping (Max) @ Ipp: 13V
- Current - Peak Pulse (10/1000µs): 3A (8/20µs)
- Power - Peak Pulse: -
- Power Line Protection: No
- Applications: HDMI, USB
- Capacitance @ Frequency: 0.4pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-UFDFN
- Supplier Device Package: DFN2510-10L
