PE45569
Pasternack
Pasternack

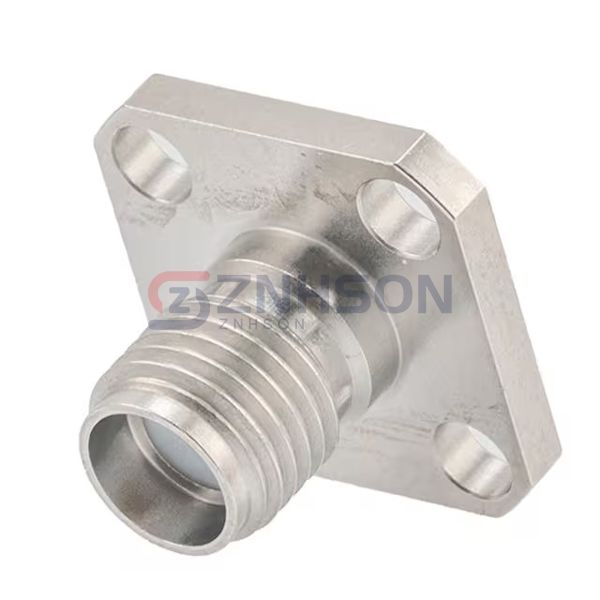

SMA(F) FLD RPL 4HOLE 0.018" PIN
$37.59
Available to order
Reference Price (USD)
1+
$37.59000
500+
$37.2141
1000+
$36.8382
1500+
$36.4623
2000+
$36.0864
2500+
$35.7105
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PE45569 from Pasternack represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The PE45569 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Receptacle, Female Socket
- Contact Termination: Compression
- Shield Termination: Screw
- Impedance: 50Ohm
- Mounting Type: Panel Mount
- Mounting Feature: Flange
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 27 GHz
- Number of Ports: 1
- Features: Field Replaceable, For Hermetically Sealed Pin
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
