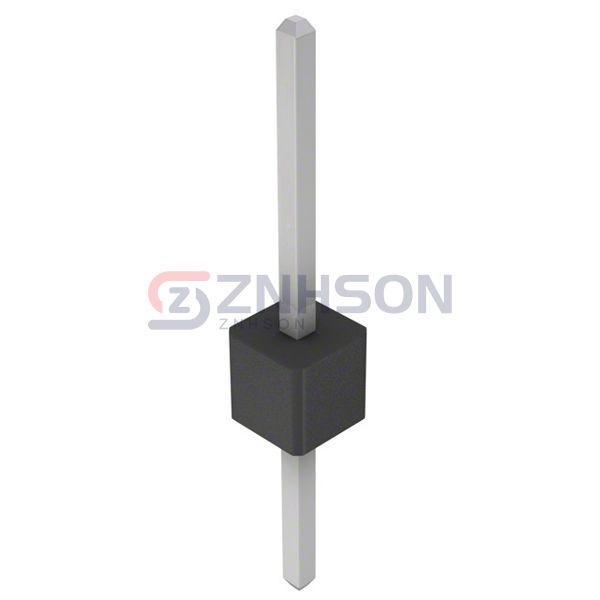

PEC01SFBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 1POS
$0.17
Available to order
Reference Price (USD)
1+
$0.17000
10+
$0.16300
25+
$0.12120
50+
$0.10400
100+
$0.10050
250+
$0.08668
500+
$0.08320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PEC01SFBN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PEC01SFBN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 1
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.220" (5.58mm)
- Overall Contact Length: 0.638" (16.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
