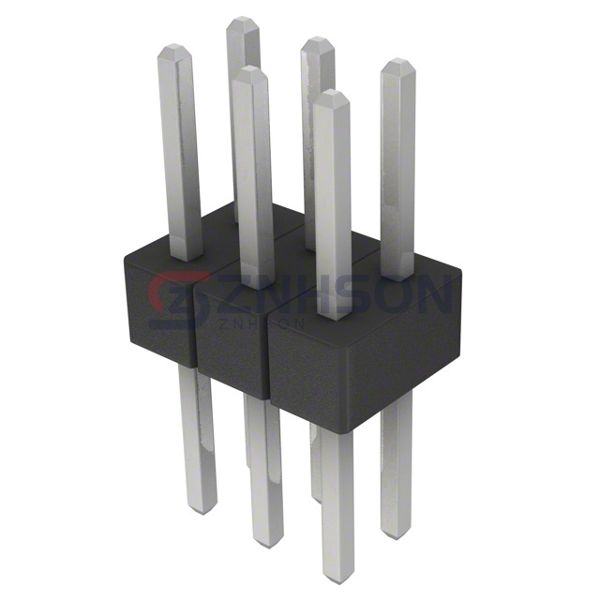

PEC03DABN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 6POS 2.54MM
$0.44
Available to order
Reference Price (USD)
1+
$0.44000
10+
$0.41100
25+
$0.37000
50+
$0.32880
100+
$0.31510
250+
$0.28772
500+
$0.27400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PEC03DABN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PEC03DABN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.230" (5.84mm)
- Overall Contact Length: 0.560" (14.22mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
