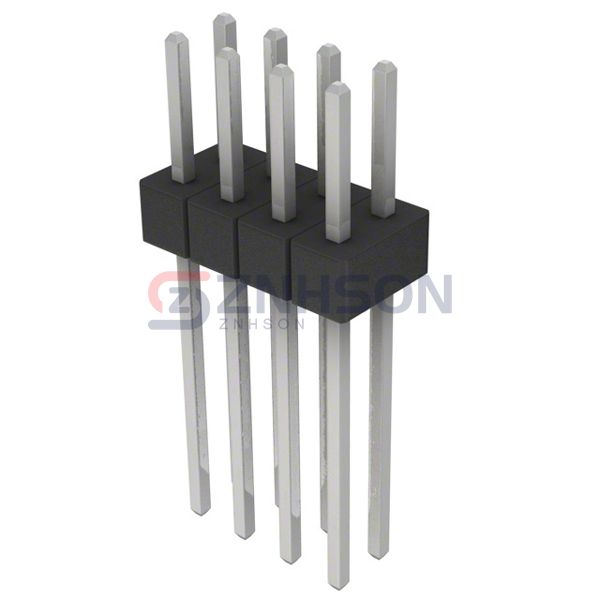

PEC04DAEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 8POS 2.54MM
$0.86
Available to order
Reference Price (USD)
1+
$0.86000
10+
$0.75800
25+
$0.71360
50+
$0.68380
100+
$0.65410
250+
$0.59468
500+
$0.53520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PEC04DAEN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PEC04DAEN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.850" (21.59mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
832-10-056-30-001101
Samtec Inc.
ZSS-136-07-G-D-1140
Samtec Inc.
TSW-113-05-T-S
Samtec Inc.
TFM-140-02-S-D-WT-K-TR
Preci-Dip
892-18-060-10-003101
Samtec Inc.
EHT-122-01-F-D-SM-SR
Samtec Inc.

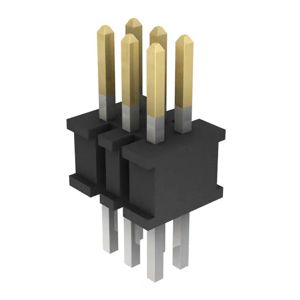

FTSH-125-02-F-DV
Samtec Inc.

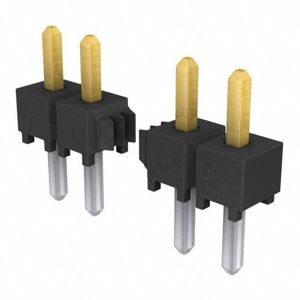

TSW-120-06-L-S
Würth Elektronik

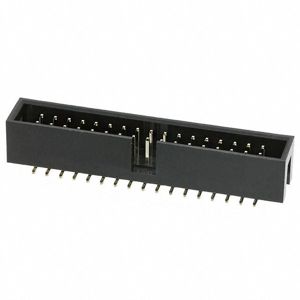

61203420621
