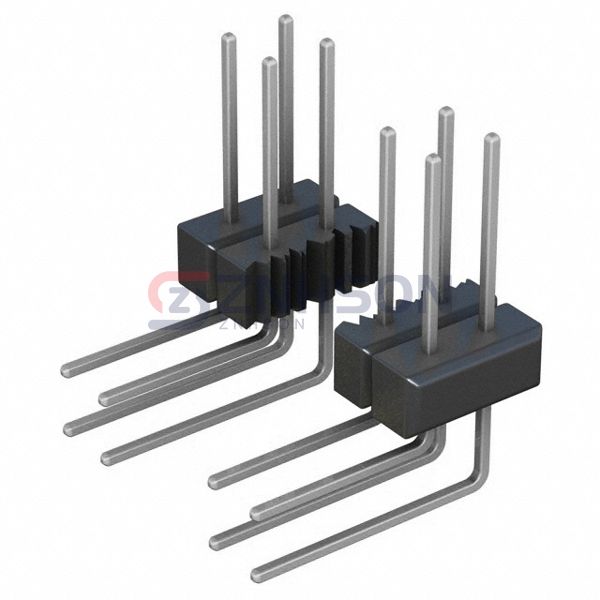

PEC07DBCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 14POS 2.54MM
$1.83
Available to order
Reference Price (USD)
1+
$1.83000
10+
$1.66400
25+
$1.56160
50+
$1.49380
100+
$1.42590
250+
$1.29012
500+
$1.18826
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC07DBCN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.300" (7.62mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
852-10-002-10-001000
Amphenol ICC (FCI)
69192-220
Harwin Inc.
M30-6001446
Harwin Inc.
M225-5202046
Sullins Connector Solutions
PEC23SABN
Samtec Inc.
HMTSW-101-07-T-S-170
Samtec Inc.

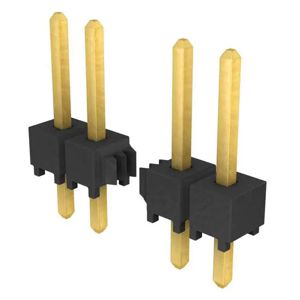

TSW-128-23-G-S
TE Connectivity AMP Connectors

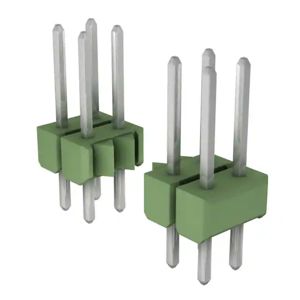

826925-6
Würth Elektronik

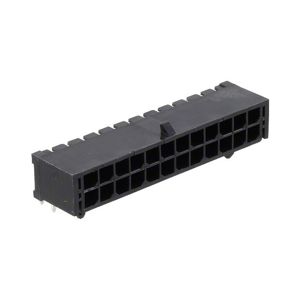

66202421022
