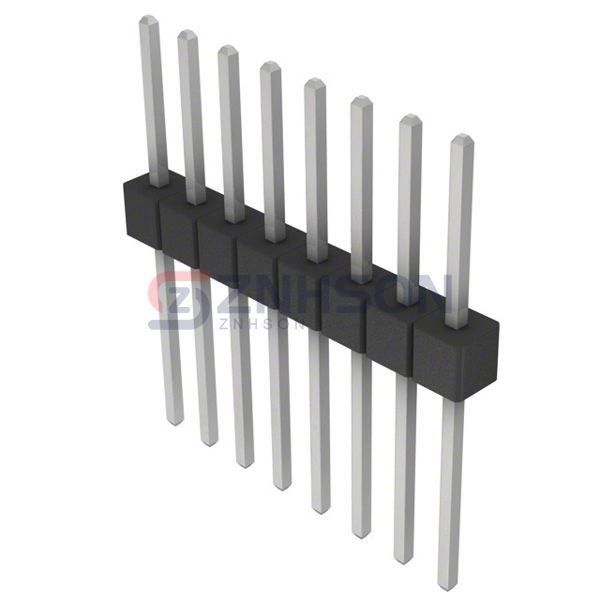

PEC08SFDN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 8POS 2.54MM
$0.94
Available to order
Reference Price (USD)
1+
$0.94000
10+
$0.83000
25+
$0.78080
50+
$0.74820
100+
$0.71570
250+
$0.65068
500+
$0.58560
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PEC08SFDN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PEC08SFDN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.838" (21.29mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
3M
929700-11-29
Adam Tech
DML-24-A-H-T-A-SBL
TE Connectivity AMP Connectors
1969814-1
Molex
0022289065
Samtec Inc.
FTMH-109-02-L-DV-ES
Samtec Inc.
TSM-129-02-S-SH-P
Samtec Inc.

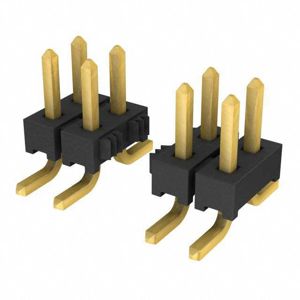

TMM-107-05-G-D-SM-P
Samtec Inc.

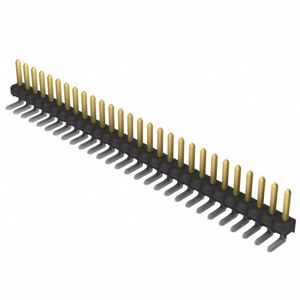

TSW-128-08-S-S-RA
Samtec Inc.

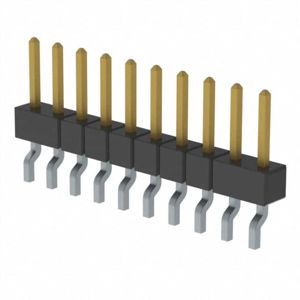

MMT-110-02-S-SH-TR
