PEC09SFEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 9POS 2.54MM
$1.41
Available to order
Reference Price (USD)
1+
$1.41000
10+
$1.23900
25+
$1.16640
50+
$1.11780
100+
$1.06920
250+
$0.97200
500+
$0.87480
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PEC09SFEN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC09SFEN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.938" (23.83mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
HARTING
09185147903
Preci-Dip
860-80-031-10-001101
Samtec Inc.
MMT-117-02-SM-DH
Samtec Inc.
BDL-129-G-F
Preci-Dip
350-10-147-01-666101
Samtec Inc.
TMM-106-06-G-D-SM-P-TR
Amphenol ICC (FCI)
77315-124-36LF
Samtec Inc.
TSW-101-07-F-S
Preci-Dip

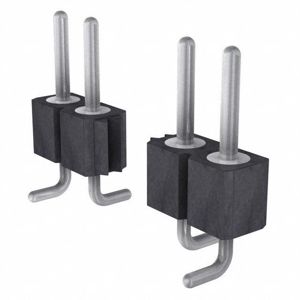

800-80-041-30-001101
