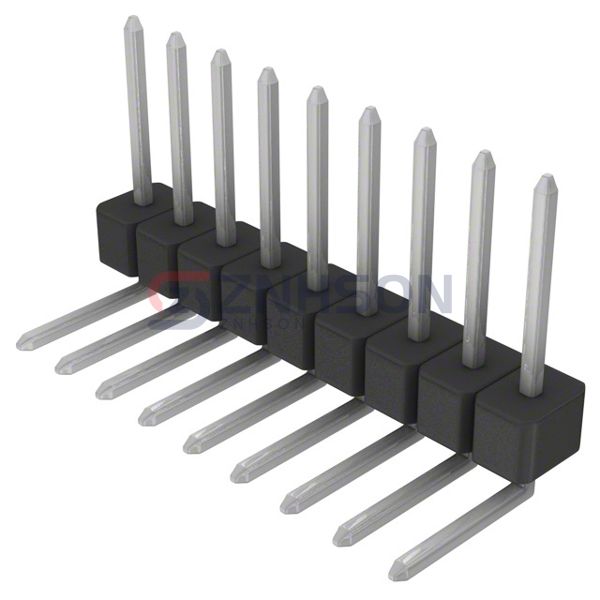

PEC09SGBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 9POS 2.54MM
$1.37
Available to order
Reference Price (USD)
1+
$1.37000
10+
$1.24200
25+
$1.16600
50+
$1.11540
100+
$1.06470
250+
$0.96332
500+
$0.88726
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PEC09SGBN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC09SGBN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.200" (5.08mm)
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
