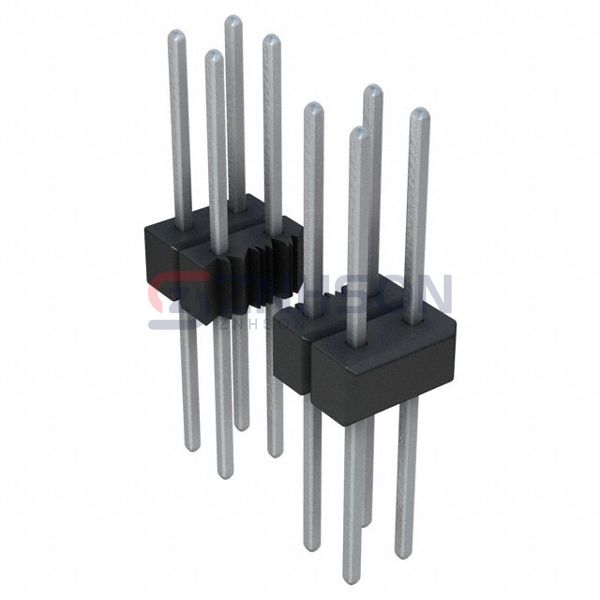

PEC10DFCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 20POS 2.54MM
$1.74
Available to order
Reference Price (USD)
1+
$1.74000
10+
$1.57600
25+
$1.47960
50+
$1.41540
100+
$1.35100
250+
$1.22232
500+
$1.12582
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PEC10DFCN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PEC10DFCN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
3M
929710-06-04
Preci-Dip
890-80-028-10-001101
Samtec Inc.
FTM-134-03-L-DV
Samtec Inc.
TSM-110-03-LM-DH-A-P-TR
Preci-Dip
399-10-109-10-009101
Samtec Inc.

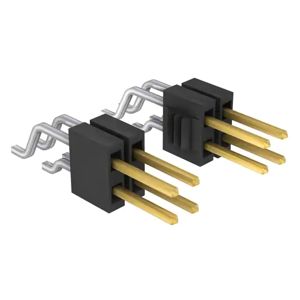

FTSH-125-01-L-DH-TR
Molex

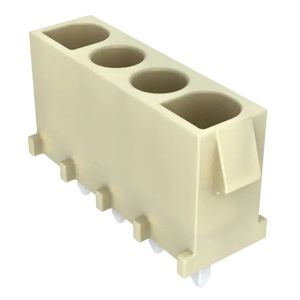

0010845040
Mill-Max Manufacturing Corp.

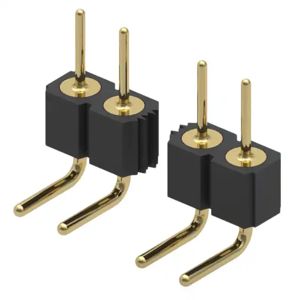

399-10-109-10-009000
Samtec Inc.

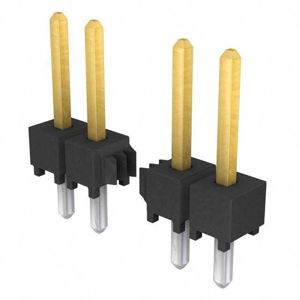

TSW-123-07-L-S
