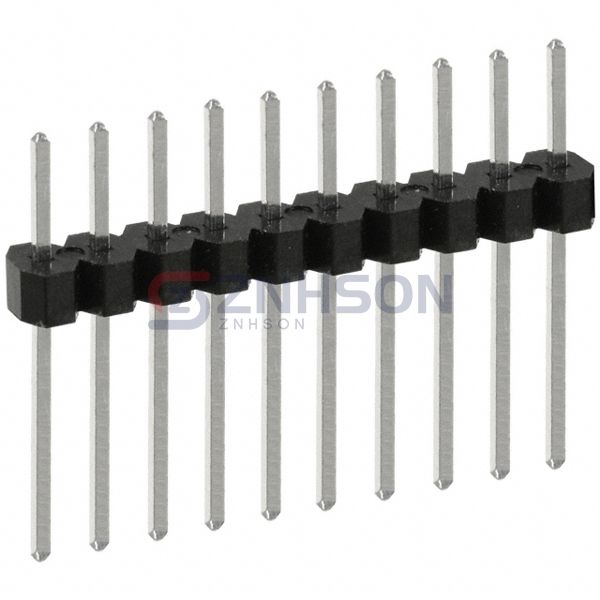

PEC10SADN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 10POS 2.54MM
$1.00
Available to order
Reference Price (USD)
1+
$1.00000
10+
$0.87500
25+
$0.82400
50+
$0.78960
100+
$0.75530
250+
$0.68668
500+
$0.61800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PEC10SADN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC10SADN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
JST Sales America Inc.
B34B-PHDSS(LF)(SN)
Samtec Inc.
BBD-111-G-C
Preci-Dip
351-80-127-00-005101
Samtec Inc.
TSW-130-23-T-D
Preci-Dip
350-80-163-00-024101

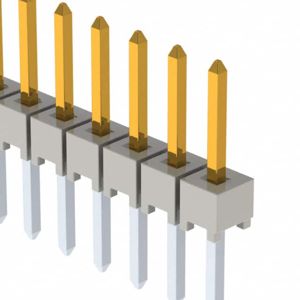

Samtec Inc.
HTSW-140-08-S-S

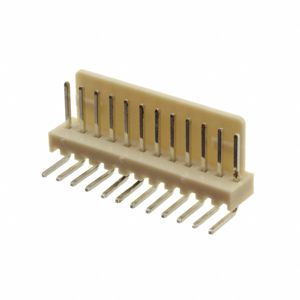

Adam Tech
LHA-12-TRA

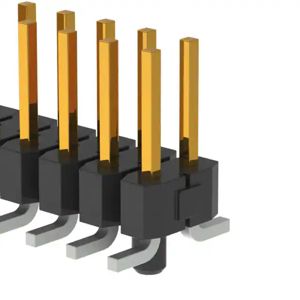

Samtec Inc.
TSM-127-01-F-DV-A

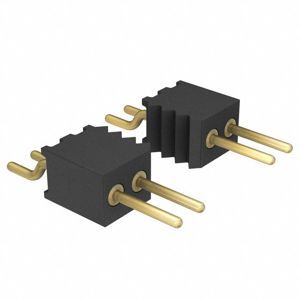

Preci-Dip
