PEC11DGAN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 22POS 2.54MM
$3.32
Available to order
Reference Price (USD)
1+
$3.32000
10+
$2.97200
100+
$2.44730
500+
$1.93456
1,000+
$1.66070
5,000+
$1.51502
10,000+
$1.45675
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PEC11DGAN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC11DGAN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Discontinued at Digi-Key
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
852-80-074-30-002101
TE Connectivity AMP Connectors
9-103329-0-32
Preci-Dip
800-80-007-20-101101
Preci-Dip
830-80-017-30-001101
Preci-Dip
499-10-234-10-009101
Hirose Electric Co Ltd
DF3-10P-2DS(01)
Samtec Inc.
FTSH-110-04-S-DV-A-P-TR
Molex
0877580014
Molex

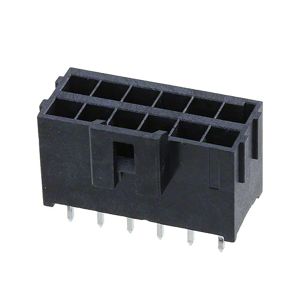

1722981112
