PEC13DAHN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 26POS 2.54MM
$3.48
Available to order
Reference Price (USD)
1+
$3.48000
10+
$3.33800
25+
$3.06040
50+
$2.92120
100+
$2.78200
250+
$2.43424
500+
$2.36470
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the PEC13DAHN rectangular connector header by Sullins Connector Solutions. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the PEC13DAHN ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Sullins Connector Solutions for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
800-80-051-30-480101
Samtec Inc.
TMM-107-06-S-D-SM-TR
Samtec Inc.
TMS-150-53-S-S
Samtec Inc.

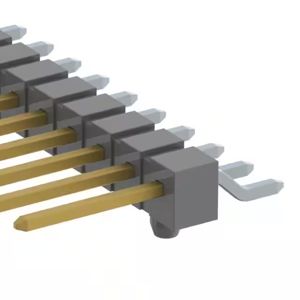

TSM-112-02-LM-SH-A-P
Samtec Inc.

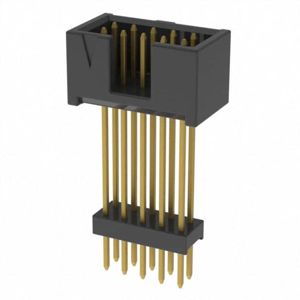

ZSS-105-07-G-D-1085
Samtec Inc.

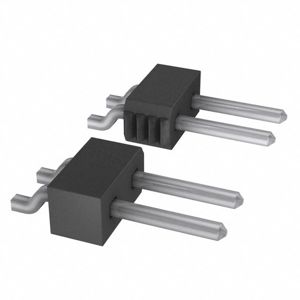

TSM-130-01-T-SH
Amphenol ICC (FCI)

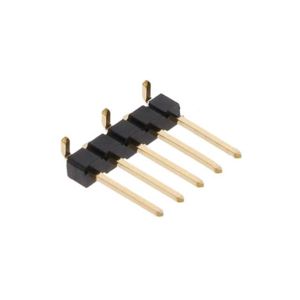

10129380-905002ALF
Samtec Inc.

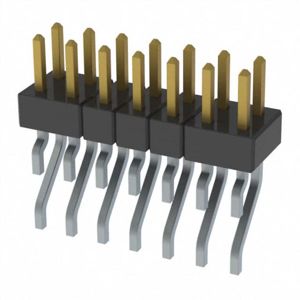

MMT-107-01-SM-DH-K-TR
