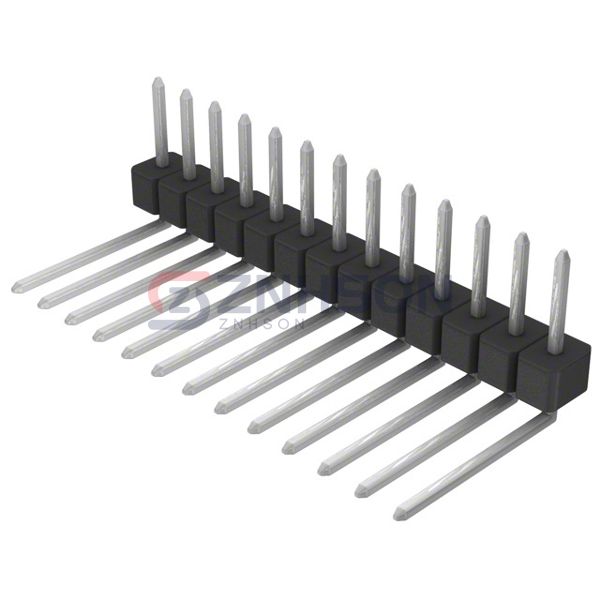

PEC13SBDN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 13POS 2.54MM
$2.14
Available to order
Reference Price (USD)
1+
$2.14000
10+
$1.94300
25+
$1.82400
50+
$1.74460
100+
$1.66530
250+
$1.50672
500+
$1.38776
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the PEC13SBDN rectangular connector header from Sullins Connector Solutions for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Sullins Connector Solutions is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.400" (10.16mm)
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0026482183
Sullins Connector Solutions
PEC36DFAN
Samtec Inc.

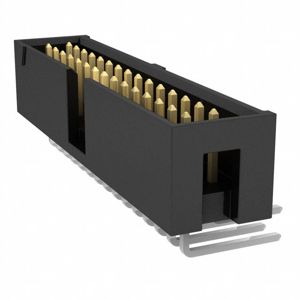

TSS-115-04-S-D-RA
Molex

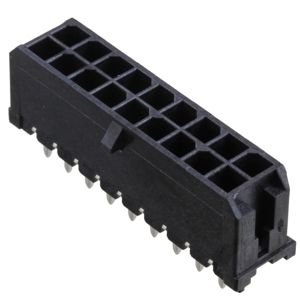

0430451828
TE Connectivity AMP Connectors

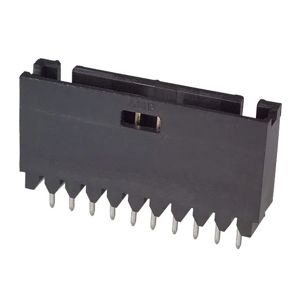

5-103414-8
Samtec Inc.
TMM-107-01-G-S-SM-P-TR
Hirose Electric Co Ltd

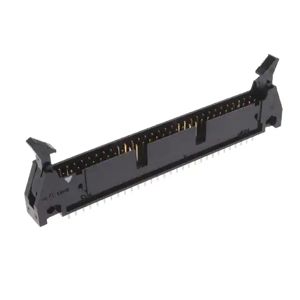

HIF3BA-60PA-2.54DSA(63)
Samtec Inc.
TD-102-T-A
TE Connectivity AMP Connectors

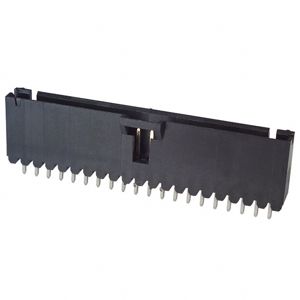

1-103670-9
