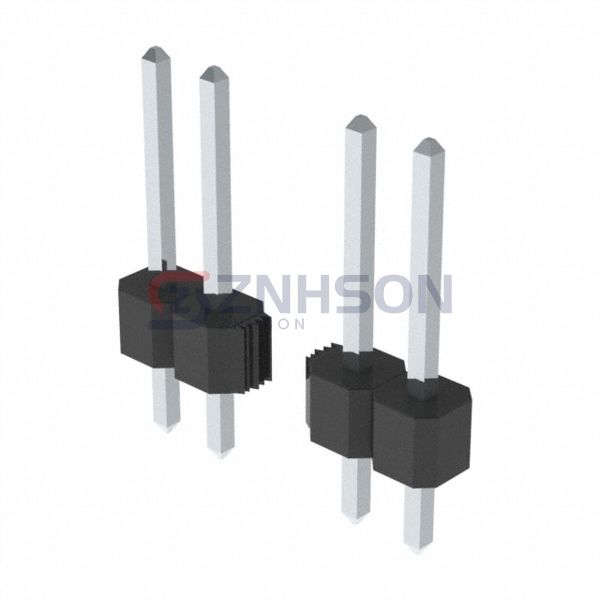

PEC13SFAN

Sullins Connector Solutions

Manufacturer

Sullins Connector Solutions

Description:

CONN HEADER VERT 13POS 2.54MM

Datasheet:

PEC13SFAN Datasheet

$0.85

Available to order

Reference Price (USD)

$0.85000

10+

$0.75100

25+

$0.70720

50+

$0.67780

100+

$0.64830

250+

$0.58936

500+

$0.53040

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Enhance your electronic assemblies with the PEC13SFAN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC13SFAN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.

Specifications

Product Status: Active
Connector Type: Header, Breakaway
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 13
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.318" (8.08mm)
Contact Length - Post: 0.120" (3.05mm)
Overall Contact Length: 0.538" (13.67mm)
Insulation Height: 0.100" (2.54mm)
Contact Shape: Square
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 100.0µin (2.54µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT)
Features: -
Operating Temperature: -65°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: -

Shopping cart

PEC13SFAN

Reference Price (USD)

Specifications

Related Products

PBC03SBEN

FTE-110-01-G-DV-A-P

77313-402-38LF

68016-136HLF

4-103783-0-01

929705-01-03-I

825437-5

TMM-120-01-L-D-SM

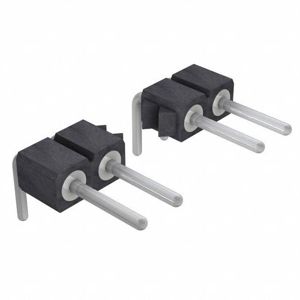

800-80-058-20-004101

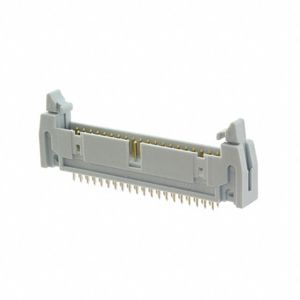

AWH 40G-0222-T
