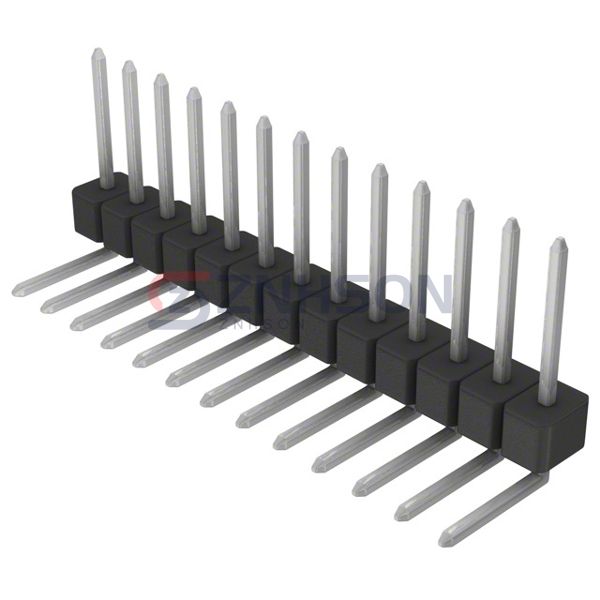

PEC13SGBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 13POS 2.54MM
$1.98
Available to order
Reference Price (USD)
1+
$1.98000
10+
$1.79400
25+
$1.68440
50+
$1.61120
100+
$1.53790
250+
$1.39144
500+
$1.28158
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC13SGBN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PEC13SGBN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.200" (5.08mm)
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1897005-1
JST Sales America Inc.
B6P-VH(LF)(SN)
Samtec Inc.
TFC-107-01-L-D
Molex
0039290083
Amphenol ICC (FCI)
75188-130-03LF
Samtec Inc.

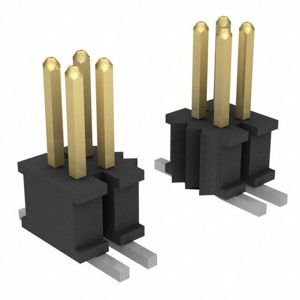

FTSH-116-01-L-DV-P
Samtec Inc.

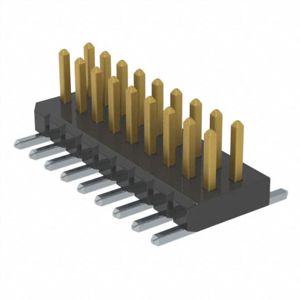

FTM-109-02-F-DV
Samtec Inc.
TSM-120-01-T-SV
Samtec Inc.

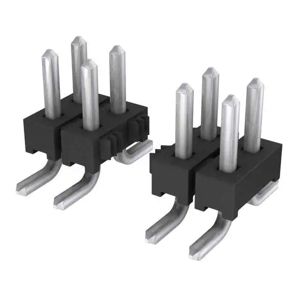

TMM-106-06-T-D-SM
