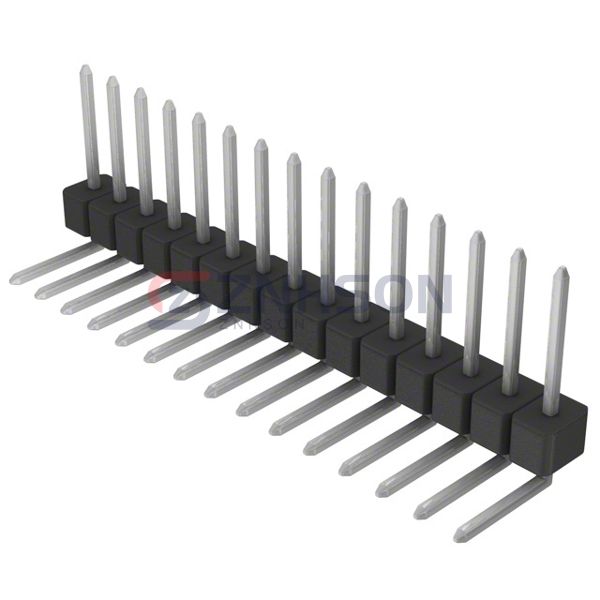

PEC15SGBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 15POS 2.54MM
$2.28
Available to order
Reference Price (USD)
1+
$2.28000
10+
$2.07000
25+
$1.94360
50+
$1.85900
100+
$1.77450
250+
$1.60552
500+
$1.47876
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the PEC15SGBN rectangular connector header from Sullins Connector Solutions for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Sullins Connector Solutions is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 15
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.200" (5.08mm)
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-112-02-S-DH-P-TR
Sullins Connector Solutions
PBC14SGAN
Preci-Dip
892-18-066-10-003101
Amphenol ICC (FCI)
10112690-G03-04ULF
Oupiin
2112-1X05G00SB
Samtec Inc.
TSM-115-02-LM-SV-A-P

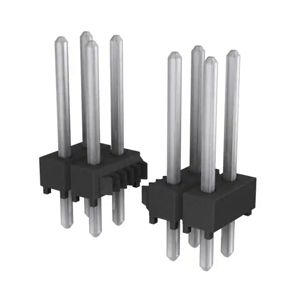

Samtec Inc.
TSW-112-14-T-D

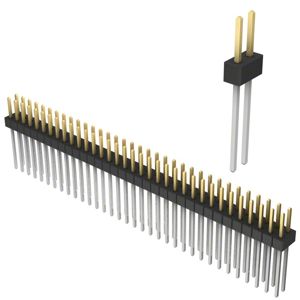

Sullins Connector Solutions
